  13. Magnetic Coil, IEC, 208VAC, 50/60 Hz

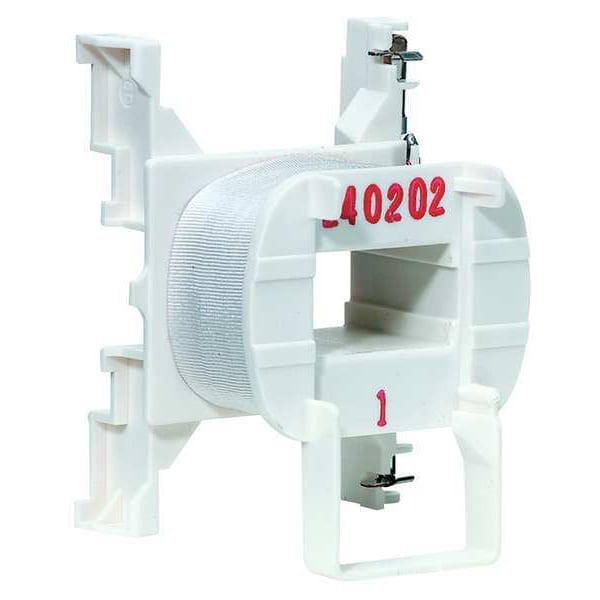

Square D Magnetic Coil, IEC, 208VAC, 50/60 Hz LXD1LE7 - main

Magnetic Coil, IEC, 208VAC, 50/60 Hz

  • Mfr # LXD1LE7

  • Zoro # G1313444

product price: $42.49
/ea

Key Features

Coil Volts
208V AC
VA Rating
70
For Use With
LC1D09-32 and LC1DT20-40 Series Contactors
Hz
50/60
Contactor Type
IEC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LXD1LE7
Zoro #
G1313444
UPC #
785901580294
Country of Origin
France

Details

Item
Replacement Coil
Coil Volts
208V AC
VA Rating
70
For Use With
LC1D09-32 and LC1DT20-40 Series Contactors
Hz
50/60
Contactor Type
IEC
Type
IEC
Average Resistance
430.4 Ohm 20 °C
Inductance Of Closed Circuit
16 H
Device Short Name
LXD1
Maximum Operating Rate
3600 cyc/h 60 °C
Inrush Power In Va
70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C)
Control Circuit Type
AC 50/60 Hz
Coil Technology
without built-in suppressor module
Mechanical Durability
15 Mcycles
Product Or Component Type
contactor coil
Control Circuit Voltage Limits
drop-out 0.3 to 0.6 Uc 50/60 Hz 60 °C) || operational 0.8 to 1.1 Uc 50 Hz 60 °C)
Range
TeSys
Heat Dissipation
2-3 W 50/60 Hz
[Uc] Control Circuit Voltage
208 V AC 50/60 Hz
Product Compatibility
CAD || LC1DT20 to DT40 || LC1D09 to D38
Hold-In Power Consumption In Va
7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C)
Ambient Air Temperature For Operation
-5-60 °C
Frequency
50/60 Hz
Compatible with Series
CAD Relays, LC1D09 to D38 Contactors, LC1DT20 to DT40 Contactors, TeSys Deca
Contactor Style
IEC
Coil Voltage
208V AC
Coil Power
70 VA

Description

Replacement Coil, Coil Voltage 208V AC, NEMA Size Not Applicable, Compatible with Series CAD Relays, LC1D09 to D38 Contactors, LC1DT20 to DT40 Contactors, TeSys Deca, Contactor Style IEC, Coil Power 70 VA, Frequency 50/60 Hz
