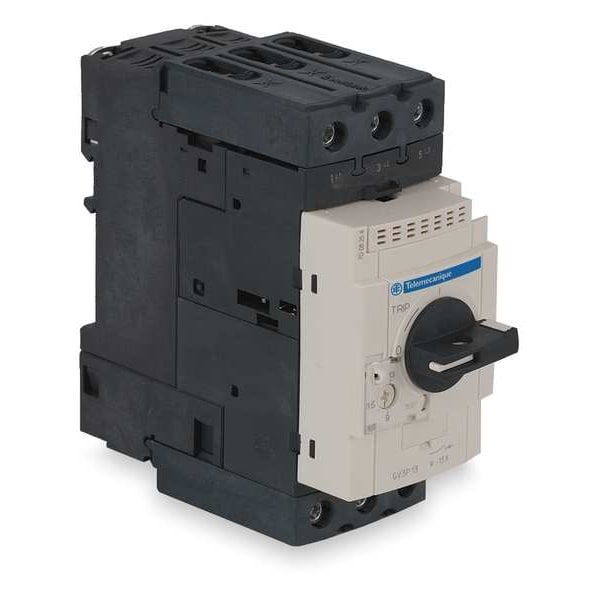

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 13 A

  • Mfr # GV3P13

  • Zoro # G2934407

product price:
$
460.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
13 A
Series
TeSys Deca
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GV3P13
Zoro #
G2934407
UPC #
785901492214
Country of Origin
Korea, Republic of

Dimensions

Overall Depth
5.35 in
Overall Width
2.17 in
Overall Height
5.2 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
13 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
HP @ 1 Phase - 230V
2 hp
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
HP @ 3 Phase - 460-575V
7.5/10
Pilot Light
No
HP @ 3 Phase - 575V
10 hp
Phase Loss Sensitivity
Yes
Operating Altitude
9842.52 ft (3000 m)
Device Application
motor protection
Network Type
AC
Rated Duty
continuous IEC 60947-4-1
Color
dark grey
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
Product Name
TeSys GV3 || TeSys Deca
Power Dissipation Per Pole
8 W
Ambient Air Temperature For Storage
-40-80°C
Utilisation Category
AC-3 IEC 60947-4-1
Fire Resistance
960°C IEC 60695-2-11
Climatic Withstand
IACS E10
Device Short Name
GV3P
Range
TeSys Deca
Phase Failure Sensitivity
yes IEC 60947-4-1
Tightening Torque
5 N.m screw clamp terminal
Motor Power Kw
5.5-5.5 kW 400/415 V AC 50/60 Hz || 7.5-7.5 kW 500 V AC 50/60 Hz || 11-11 kW 690 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Thermal Protection Adjustment Range
9-13 A IEC 60947-4-1
Trip Unit Technology
thermal-magnetic
Magnetic Tripping Current
182-182 A
Ik Degree Of Protection
IK09 enclosure
Suitability For Isolation
yes IEC 60947-1
Mechanical Robustness
shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
Mechanical Operating Durability
50,000
Horsepower @ Three Phase - 600V AC
10 hp
Frequency
50/60 Hz
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 208V AC
3 hp
Resistance Properties
Fire Resistant
Minimum Overload Relay Current Setting
9 A
Starter Style
IEC
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Minimum Operating Temperature
-4 Degrees F
Electrical Operating Durability
50,000
Maximum Overload Relay Current Setting
13 A
IP Rating
IP20
Maximum Operating Temperature
140 Degrees F
Overload Protection Type
Thermal
Horsepower @ Single Phase - 120V AC
1 hp
Terminal Connection Type
Screw Clamp Terminals
Horsepower @ Three Phase - 240V AC
3 hp
Includes Pilot Light
No
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1 hp, Horsepower @ Single Phase - 240V AC 2 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 13 A, Horsepower @ Three Phase - 208V AC 3 hp, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 7 1/2 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Overload Relay Current Setting 13 A
