  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 1.6 A

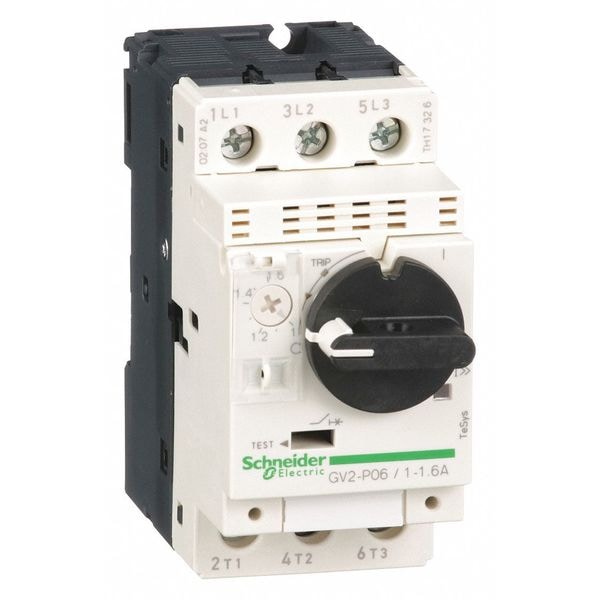

Square D Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 1.6 A GV2P06 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 1.6 A

  • Mfr # GV2P06

  • Zoro # G0526547

product price: $290.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
1.6 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2P06
Zoro #
G0526547
UPC #
785901832881
Country of Origin
Thailand

Dimensions

Overall Height
3.5 in
Overall Depth
3.82 in
Overall Width
1.77 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
1.6 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Phase Loss Sensitivity
Yes
HP @ 1 Phase - 230V
1/10 hp
HP @ 3 Phase - 460-575V
0.75/1
HP @ 3 Phase - 575V
1 hp
Description/Special Features
Reliable Overload Protection
Pilot Light
Yes
Phase Failure Sensitivity
yes IEC 60947-4-1
Fire Resistance
960°C IEC 60695-2-11
Operating Altitude
6561.68 ft (2000 m)
Range
TeSys Deca
Ik Degree Of Protection
IK04
Device Short Name
GV2P
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Product Name
TeSys GV2 || TeSys Deca
Tightening Torque
1.7 N.m screw clamp terminal
Color
dark grey
Ambient Air Temperature For Storage
-40-80°C
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with 2 x M4 screws)
Motor Power Kw
0.37-0.37 kW 400/415 V AC 50/60 Hz || 0.55-0.55 kW 400/415 V AC 50/60 Hz || 0.37-0.37 kW 500 V AC 50/60 Hz || 0.55-0.55 kW 500 V AC 50/60 Hz || 0.75-0.75 kW 690 V AC 50/60 Hz
Power Dissipation Per Pole
2.5 W
Thermal Protection Adjustment Range
1-1.6 A IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Network Type
AC
Device Application
motor protection
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Magnetic Tripping Current
22.5-22.5 A
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Trip Unit Technology
thermal-magnetic
Climatic Withstand
IACS E10
Rated Duty
continuous IEC 60947-4-1
Overload Protection Type
Thermal
Includes Pilot Light
No
Frequency
50/60 Hz
Minimum Overload Relay Current Setting
1 A
Horsepower @ Three Phase - 480V AC
3/4 hp
Maximum Voltage Rating
600V AC
Electrical Operating Durability
100,000
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP20
Terminal Connection Type
Screw Clamp Terminals
Resistance Properties
Fire Resistant
Mechanical Operating Durability
100,000
Maximum Operating Temperature
140 Degrees F
Starter Style
IEC
Horsepower @ Single Phase - 240V AC
1/10 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 600V AC
1 hp
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 100% 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 240V AC 1/10 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 1.6 A, Horsepower @ Three Phase - 480V AC 3/4 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 1 hp, Maximum Overload Relay Current Setting 1.6 A, Minimum Overload Relay Current Setting 1 A, NEMA Enclosure Rating No Enclosure, Overload Protection Type Thermal, Starter Style IEC
