  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 2.5 A

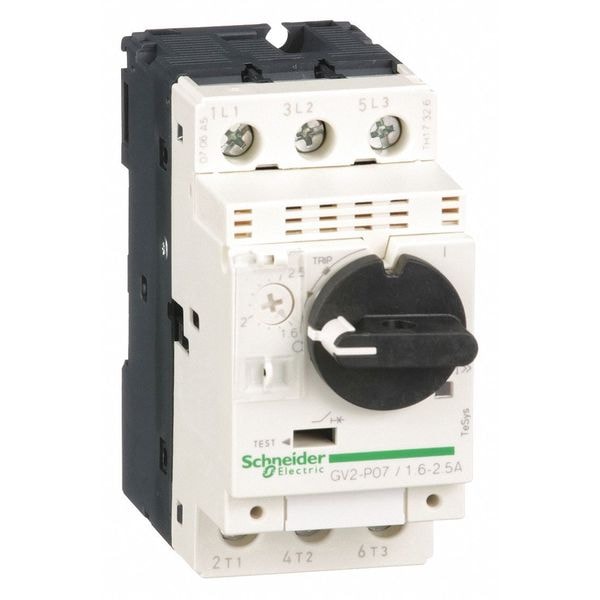

Square D Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 2.5 A GV2P07 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 2.5 A

  • Mfr # GV2P07

  • Zoro # G2210442

product price: $225.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
2.5 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2P07
Zoro #
G2210442
UPC #
785901832898
Country of Origin
Thailand

Dimensions

Overall Height
3.5 in
Overall Width
1.77 in
Overall Depth
3.82 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
2.5 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
HP @ 3 Phase - 460-575V
1/1-1/2
HP @ 3 Phase - 575V
1 1/2 hp
Pilot Light
Yes
Description/Special Features
Reliable Overload Protection
Phase Loss Sensitivity
Yes
HP @ 1 Phase - 230V
1/6 hp
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with 2 x M4 screws)
Phase Failure Sensitivity
yes IEC 60947-4-1
Trip Unit Technology
thermal-magnetic
Ambient Air Temperature For Storage
-40-80°C
Thermal Protection Adjustment Range
1.6-2.5 A IEC 60947-4-1
Tightening Torque
1.7 N.m screw clamp terminal
Operating Altitude
6561.68 ft (2000 m)
Product Name
TeSys GV2 || TeSys Deca
Rated Duty
continuous IEC 60947-4-1
Range
TeSys Deca
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Network Type
AC
Color
dark grey
Magnetic Tripping Current
33.5-33.5 A
Power Dissipation Per Pole
2.5 W
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Motor Power Kw
0.75-0.75 kW 400/415 V AC 50/60 Hz || 1.1-1.1 kW 500 V AC 50/60 Hz || 1.5-1.5 kW 690 V AC 50/60 Hz
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Fire Resistance
960°C IEC 60695-2-11
Climatic Withstand
IACS E10
Ik Degree Of Protection
IK04
Device Short Name
GV2P
Device Application
motor protection
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 208V AC
1/2 hp
Electrical Operating Durability
100,000
Horsepower @ Three Phase - 600V AC
1 1/2 hp
Horsepower @ Single Phase - 240V AC
1/6 hp
Minimum Overload Relay Current Setting
1.6 A
Resistance Properties
Fire Resistant
Overload Protection Type
Thermal
Horsepower @ Three Phase - 240V AC
1/2 hp
IP Rating
IP20
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-4 Degrees F
Terminal Connection Type
Screw Clamp Terminals
Horsepower @ Three Phase - 480V AC
1 hp
Mechanical Operating Durability
100,000
Includes Pilot Light
No
Maximum Voltage Rating
600V AC
Starter Style
IEC
Frequency
50/60 Hz
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 240V AC 1/6 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 2.5 A, Horsepower @ Three Phase - 208V AC 1/2 hp, Horsepower @ Three Phase - 240V AC 1/2 hp, Horsepower @ Three Phase - 480V AC 1 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 1 1/2 hp, Maximum Overload Relay Current Setting 2.5 A, Minimum Overload Relay Current Setting 1.6 A
