Shop TRUMETER

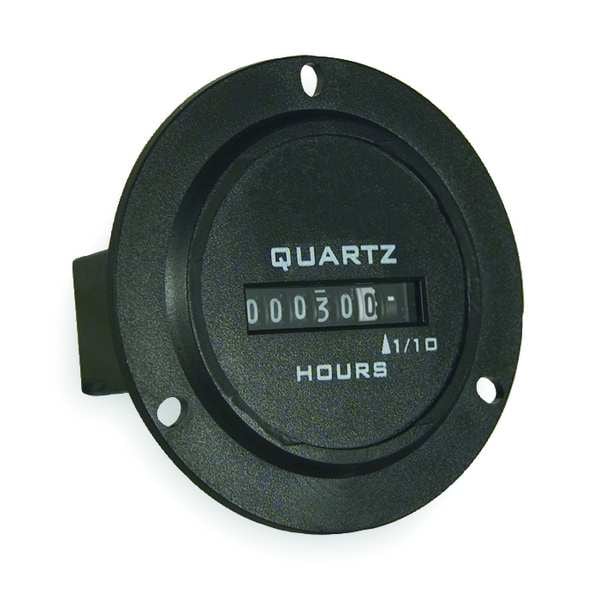

Hour Meter, DC Quartz, Round, 3 Hole

  • Mfr # 732-0001

  • Zoro # G3184842

product price:
$
34.49
/ea

Key Features

Display Type
Electromechanical
Reset Type
No Reset
Display Units
Hours/Tenths
Number of Digits
6
Operating Voltage
10 to 80V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
732-0001
Zoro #
G3184842
UPC #
-
Country of Origin
India

Dimensions

Bezel Face Size
2.80 in dia
Bezel To Back Length
1.5 in
Overall Depth
2 3/8 in
Bezel Face Diameter
2 3/4 in
Cutout Diameter
2 in
Overall Diameter
2 3/4 in

Details

Item
Hour Meter
Display Type
Electromechanical
Reset Type
No Reset
Display Units
Hours/Tenths
Number of Digits
6
Operating Voltage
10 to 80V DC
Time Range
0 to 99999.9
Bezel Face Shape
Round
Bezel Face Type
Flange Mount
Material of Construction
Black Polymer
Fits Panel Cut Out
2.00 in dia
Terminal Type
Spade
Temp. Range
-40 Degrees to 185 Degrees F
Elapsed Time To
99,999.9
Ambient Temp. Range
-40 Degrees to 185 Degrees F
Fits
2.0 in dia Panel Opening
Mounting Method
3-Screw
Standards
CE, CUL, RoHS, UKCA, UL
Input
10-80V DC
Housings
2-Hole, 3-Hole, Cup Mount, Flush Rectangular, SAE Round, Square, Stirrup Mount
Reset Option
Non-Reset
Timer Type
Hour Meter
Certifications
CE, cUL, IP66, NEMA 4 & 12, ROHS, UKCA, UL
Digits
6 Digits
Power Type
Electro-Mechanical
Operating Temperature - Minimum
-40 Degrees F
Includes Mounting Hardware
Included
Input Voltage - Maximum
80 V DC
Mount Securing Method
3-Screw
Counter Display Type
Analog
Mounting Style
Flange
Hour Unit Increment
Tenth
Input Voltage - Minimum
10 V DC
Display Span - Maximum
99,999.9
NEMA Enclosure Rating
12, 4
Operating Temperature - Maximum
185 Degrees F

Description

Hour Meter, Display Type Electromechanical, Time Range 0 to 99999.9, Bezel Face Size 2.80 in dia, Bezel Face Shape Round, Bezel Face Type Flange Mount, Elapsed Time To 99,999.9, Operating Voltage 10 to 80V DC, Number of Digits 6, Display Units Hours/Tenths, Bezel To Back Length 1.5 in, Ambient Temp. Range -40 Degrees to 185 Degrees F, Material of Construction Black Polymer, Reset Type No Reset, Temp. Range -40 Degrees to 185 Degrees F, Fits 2.0 in dia Panel Opening, Mounting Method 3-Screw
