  6. Manual Motor Switch, 16 A, 3 P, Phase, Rotary Knob, TeSys VARIO Series

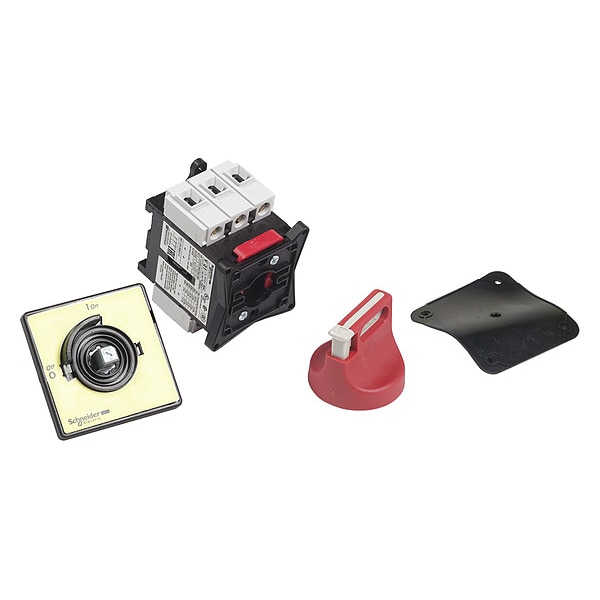

Square D Manual Motor Switch, 16 A, 3 P, Phase, Rotary Knob, TeSys VARIO Series VCF01 - main

Manual Motor Switch, 16 A, 3 P, Phase, Rotary Knob, TeSys VARIO Series

  • Mfr # VCF01

  • Zoro # G0562241

product price:  $143.99
/ea
Free Shipping & Returns

Key Features

Current AC
11 A
Height
74 mm
Width
60 mm
Operator
Rotary
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VCF01
Zoro #
G0562241
UPC #
785901163176
Country of Origin
Czechia

Dimensions

Height
74 mm
Width
60 mm
Base Dimension
60 x 60 mm

Details

Current AC
11 A
Item
Manual Motor Switch
Operator
Rotary
Number of Poles
3
Standards
IEC 60947-3
Suitability For Isolation
yes
[Icw] Rated Short-Time Withstand Current
300 A 400 V 1 s
Protective Treatment
TC
Ip Degree Of Protection
IP20 conforming to IEC 60529 || IP65
[Ithe] Conventional Enclosed Thermal Current
16 A
Tightening Torque
power circuit 2.1-2.1 N.m screw clamp terminals
Ambient Air Temperature For Operation
-20-50°C
Handle Colour
red
Marking
0 - 1
[Icm] Rated Short-Circuit Making Capacity
1 kA 400 V at Ipeak
Device Short Name
VCF
Rated Conditional Short-Circuit Current
10 kA 400 V 20 A aM || 10 kA 400 V 20 A gG
Mechanical Robustness
vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
[Ith] Conventional Free Air Thermal Current
20 A
Intermittent Duty Class
30
Mechanical Durability
100000 cycles
Fixing Mode
by 4 screws handle
Performance Level
high performance
[Uimp] Rated Impulse Withstand Voltage
8 kV
Network Type
AC || DC
Making Capacity
200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Compatibility Code
main switch disconnector
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Rotary Handle Mounting Style
direct
Mounting Support
handle door || switch door
Electrical Durability
100000 cycles AC-21 || 30000 cycles DC-1 to 5
Breaking Capacity
200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A)
[Ie] Rated Operational Current
11 A AC-23 Ue: 400 V
Fire Resistance
960°C IEC 60695-2-1
Contacts Type And Composition
3 NO
Device Composition
handle || switch
Rated Operational Power In W
7.5 kW 500 V AC-3) || 11 kW 690 V AC-23A) || 3 kW 230 to 240 V AC-3) || 4 kW 400 to 415 V AC-3) || 7.5 kW 500 V AC-23A) || 5.5 kW 690 V AC-3) || 4 kW 230 to 240 V AC-23A) || 5.5 kW 400 to 415 V AC-23A)
Handle Front Plate Colour
yellow
Maximum Voltage Rating
690V AC
Starter Style
IEC
Terminal Connection Type
Screw Clamp
Mounting Style
Door
Series
TeSys VARIO

Description

16A Sw Kit W/4Hole Mtgred/Yellow Oper
