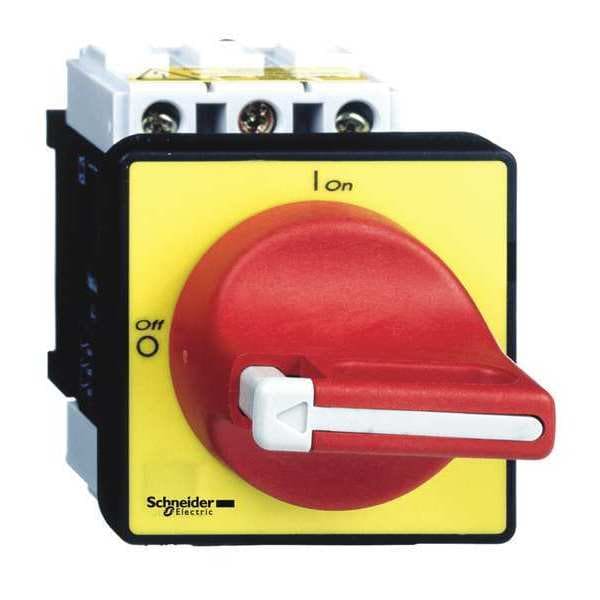

Manual Motor Switch, 25 A, 3 P, Phase, Rotary Knob, TeSys VARIO Series

  • Mfr # VCF0

  • Zoro # G0562278

product price:  $172.99
/ea
Free Shipping & Returns

Key Features

Current AC
14.5 A
Number of Poles
3
Operator
Rotary
Starter Style
IEC
Terminal Connection Type
Screw Clamp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VCF0
Zoro #
G0562278
UPC #
785901449393
Country of Origin
Korea, Republic of

Dimensions

Height
74 mm
Width
60 mm
Base Dimension
60 x 60 mm

Details

Item
Manual Motor Switch
Current AC
14.5 A
Number of Poles
3
Operator
Rotary
Starter Style
IEC
Terminal Connection Type
Screw Clamp
Maximum Voltage Rating
690 V AC
Series
TeSys VARIO
Mounting Style
Door
Standards
IEC 60947-3
Compatibility Code
main switch disconnector
Fire Resistance
960°C IEC 60695-2-1
Mechanical Robustness
vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Fixing Mode
by 4 screws handle
Device Short Name
VCF
Marking
0 - 1
Making Capacity
250 A 400 V AC-21A || 250 A 400 V AC-22A || 250 A 400 V AC-23A
Protective Treatment
TC
Performance Level
high performance
Rated Operational Power In W
11 kW 500 V AC-23A) || 11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 4 kW 230 to 240 V AC-3) || 5.5 kW 400 to 415 V AC-3) || 7.5 kW 500 V AC-3) || 5.5 kW 230 to 240 V AC-23A) || 7.5 kW 400 to 415 V AC-23A)
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
[Ith] Conventional Free Air Thermal Current
25 A
Ip Degree Of Protection
IP20 conforming to IEC 60529 || IP65
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
[Icw] Rated Short-Time Withstand Current
300 A 400 V 1 s
Network Type
AC || DC
Electrical Durability
100000 cycles AC-21 || 30000 cycles DC-1 to 5
Device Composition
switch || handle
Rotary Handle Mounting Style
direct
[Ithe] Conventional Enclosed Thermal Current
20 A
Intermittent Duty Class
30
Rated Conditional Short-Circuit Current
10 kA 400 V 25 A aM || 10 kA 400 V 25 A gG
Mounting Support
handle door || switch door
[Uimp] Rated Impulse Withstand Voltage
8 kV
[Ie] Rated Operational Current
14.5 A AC-23 Ue: 400 V
Handle Front Plate Colour
yellow
Contacts Type And Composition
3 NO
Breaking Capacity
200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A)
Suitability For Isolation
yes
Mechanical Durability
100000 cycles
Handle Colour
red
Tightening Torque
power circuit 2.1-2.1 N.m screw clamp terminals
[Icm] Rated Short-Circuit Making Capacity
1 kA 400 V at Ipeak
Ambient Air Temperature For Operation
-20-50°C

Description

20Asw Kit W/4Hole Mtgred/Yellow Oper
