  6. Enclosed Manual Motor Switch, 3 P, Phase, Rotary Handle, TeSys Series

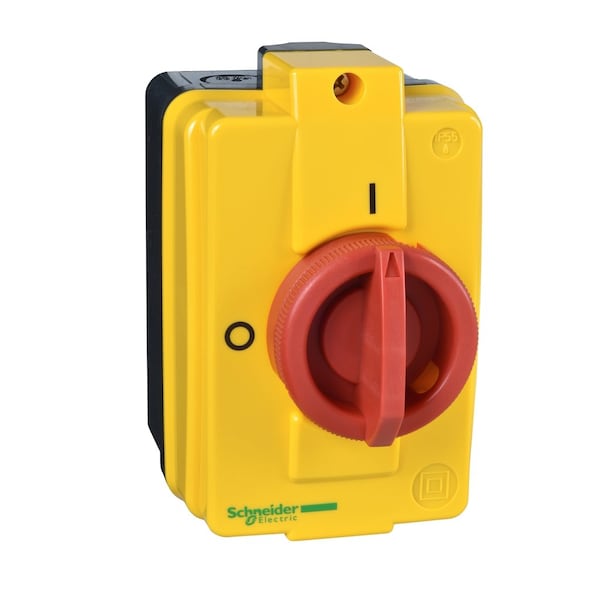

Square D Enclosed Manual Motor Switch, 3 P, Phase, Rotary Handle, TeSys Series VCFN12GE - main

Enclosed Manual Motor Switch, 3 P, Phase, Rotary Handle, TeSys Series

  • Mfr # VCFN12GE

  • Zoro # G0861841

product price:  $172.99
/ea
Free Shipping & Returns

Key Features

Current AC
8.1 A
Number of Poles
3
Operator
Rotary
Starter Style
IEC
Maximum Voltage Rating
690V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VCFN12GE
Zoro #
G0861841
UPC #
785901715306
Country of Origin
Czechia

Dimensions

Depth
106 mm
Width
82.5 mm
Height
131 mm
Base Dimension
60 x 60 mm

Details

Item
Manual Motor Switch
Current AC
8.1 A
Number of Poles
3
Operator
Rotary
Starter Style
IEC
Maximum Voltage Rating
690V AC
Series
TeSys
Standards
IEC 60947-4-1
Handle Colour
red
Rated Operational Power In W
4 kW 400 V AC-23) || 3 kW 400 V AC-3)
[Icw] Rated Short-Time Withstand Current
140 A 400 V 1 s
Protective Treatment
TC
[Uimp] Rated Impulse Withstand Voltage
8 kV
Device Short Name
VCFN
[Ithe] Conventional Enclosed Thermal Current
10A
Handle Front Plate Colour
yellow
[Ie] Rated Operational Current
8.1 A AC-23A)400 V
[Icm] Rated Short-Circuit Making Capacity
0.5 kA 400 V at Ipeak
Product Name
TeSys Mini-VARIO
Connections - Terminals
control circuit connector 4-4 mm² flexible with cable end || control circuit connector 4-4 mm² solid
Suitability For Isolation
yes
Electrical Durability
30000 cycles DC-1 to 5 || 50000 cycles AC-21
Control Type
rotary handle
Fire Resistance
960°C IEC 60595-2-1
Rated Conditional Short-Circuit Current
6 kA 400 V 12 A aM || 6 kA 400 V 12 A gG
Performance Level
standard
Poles Description
3P
Mechanical Durability
50000 cycles
Ambient Air Temperature For Operation
-20-50°C
Marking
0 - 1
Breaking Capacity
120 A 400 V AC-22A) || 120 A 400 V AC-23A) || 120 A AC-21A)
[Ue] Rated Operational Voltage
690 V AC
Tightening Torque
control circuit 0.7-0.7 N.m connector
Intermittent Duty Class
30
Mechanical Robustness
vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Product Or Component Type
emergency stop switch disconnector
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Making Capacity
120 A 400 V AC-21A || 120 A 400 V AC-22A || 120 A 400 V AC-23A

Description

10Ampmain Emergswitch Enclosure
