Shop SQUARE D

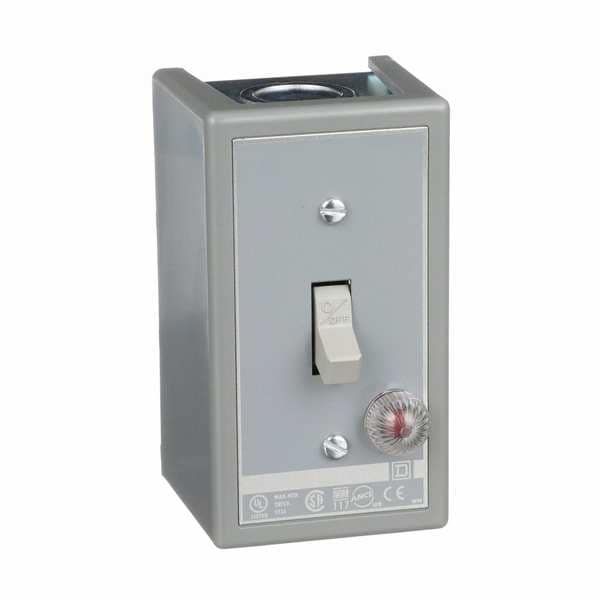

Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Type K, Class 2510 Series, NEMA 1

  • Mfr # 2510KG1B

  • Zoro # G1384686

product price:  $143.99
/ea
Free Shipping & Returns

Key Features

Current AC
30 A
Includes Pilot Light
Yes
Number of Poles
2
Phase
1
Operator
Toggle
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2510KG1B
Zoro #
G1384686
UPC #
785901554493
Country of Origin
Korea, Republic of

Dimensions

Height
4.25 in
Width
2.44 in
Depth
2.75 in
Overall Depth
2.75 in
Overall Height
4.25 in
Overall Width
2.44 in

Details

Item
Manual Motor Switch
Current AC
30 A
Includes Pilot Light
Yes
Number of Poles
2
Phase
1
Operator
Toggle
Starter Style
NEMA
Terminal Connection Type
Screw
Maximum Voltage Rating
600V AC
Series
Type K, Class 2510
Mounting Style
Surface
NEMA Enclosure Rating
NEMA 1
Standards
CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
HP @ 3 Phase - 460-575V
3 hp
HP @ 1 Phase - 230V
2 hp
Description/Special Features
Pilot Light
Phase Loss Sensitivity
No
Type
K
Cable Entry
0.5" and 0.75" knock-outs (top and bottom)
Maximum Horse Power Rating
2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
Motor Starter Type
non reversing
Awg Gauge
AWG 14 to AWG 10 copper
Local Signalling
red indicator, 230 V
[Ue] Rated Operational Voltage
600 V AC || 230 V DC
Horsepower @ Three Phase - 240V AC
2 hp
Horsepower @ Three Phase - 600V AC
3 hp
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 480V AC
3 hp
Horsepower @ 115V DC
2 hp
Horsepower @ 230V DC
1 1/2 hp
Horsepower @ Single Phase - 240V AC
2 hp

Description

Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 240V AC 2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Horsepower @ Three Phase - 600V AC 3 hp, Includes Pilot Light Yes, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Maximum Voltage Rating 230V DC, 600V AC
