  6. Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1

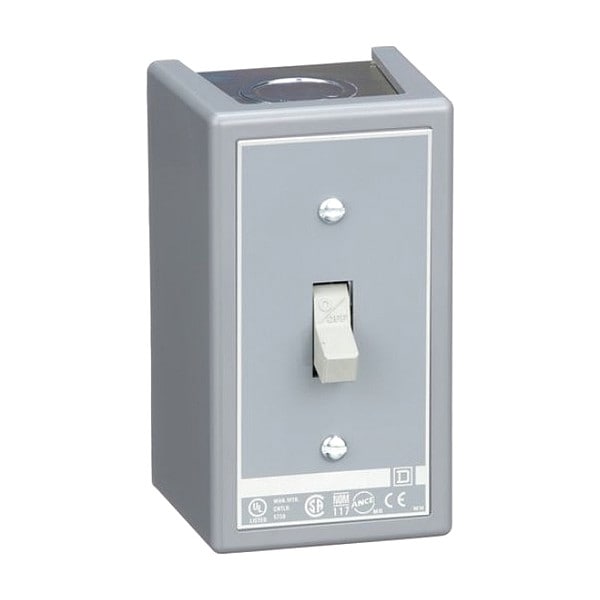

Square D Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1 2510KG2 - main

Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1

  • Mfr # 2510KG2

  • Zoro # G0383853

product price:  $144.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Current AC
30 A
Includes Pilot Light
No
Number of Poles
3
Phase
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2510KG2
Zoro #
G0383853
UPC #
785901554509
Country of Origin
Mexico

Dimensions

Depth
2.75 in
Width
2.44 in
Height
4.25 in
Overall Depth
2.75 in
Overall Width
2.44 in
Overall Height
4.25 in

Details

Item
Manual Motor Switch
Number of Gangs
1
Current AC
30 A
Includes Pilot Light
No
Number of Poles
3
Phase
3
Operator
Toggle
Starter Style
NEMA
Terminal Connection Type
Screw
Maximum Voltage Rating
600V AC
Series
Type K, Class 2510
Mounting Style
Surface
NEMA Enclosure Rating
NEMA 1
Standards
CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
Phase Loss Sensitivity
No
HP @ 1 Phase - 230V
7 1/2 hp
Description/Special Features
General Purpose Surface Mount
HP @ 3 Phase - 460-575V
10 hp
Type
K
[Ue] Rated Operational Voltage
600 V AC || 230 V DC
Cable Entry
0.5" and 0.75" knock-outs (top and bottom)
Motor Starter Type
non reversing
Local Signalling
no indicator
Awg Gauge
AWG 14 to AWG 10 copper
Maximum Horse Power Rating
2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
Resistance Properties
Temperature Resistant
Horsepower @ 230V DC
1 1/2 hp
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 600V AC
10 hp
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Horsepower @ Three Phase - 480V AC
10 hp

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.84 lb. This device is UL Listed and CSA certified.
