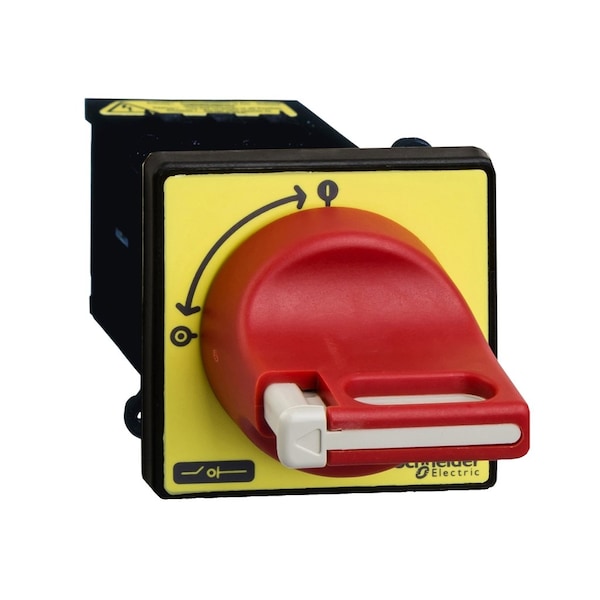

Manual Motor Switch, 12 A, 3 P, Phase, Rotary Knob, TeSys Mini-VARIO Series

  • Mfr # VCDN12

  • Zoro # G0562305

product price:  $89.19
/ea

Key Features

Current AC
8.1 A
Number of Poles
3
Operator
Rotary
Starter Style
IEC
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VCDN12
Zoro #
G0562305
UPC #
785901759874
Country of Origin
Korea, Republic of

Dimensions

Height
60 mm
Width
60 mm
Base Dimension
60 x 60 mm

Details

Item
Manual Motor Switch
Current AC
8.1 A
Number of Poles
3
Operator
Rotary
Starter Style
IEC
Terminal Connection Type
Screw Clamp
Maximum Voltage Rating
690V AC
Series
TeSys Mini-VARIO
Mounting Style
Door
Standards
IEC 60947-3
Ambient Air Temperature For Operation
-20-50°C
Mounting Support
handle door || switch door
[Ie] Rated Operational Current
8.1 A AC-23)400 V
Rotary Handle Mounting Style
direct
Tightening Torque
power circuit 0.7-0.7 N.m screw clamp terminals
Performance Level
standard
Fire Resistance
960°C IEC 60695-2-1
Rated Operational Power In W
3 kW 230 to 240 V AC-23A) || 4 kW 400 to 415 V AC-23A) || 5.5 kW 500 V AC-23A) || 7.5 kW 690 V AC-23A) || 1.5 kW 230 to 240 V AC-3) || 3 kW 400 to 415 V AC-3) || 4 kW 500 V AC-3) || 4 kW 690 V AC-3)
[Ithe] Conventional Enclosed Thermal Current
10A
[Ith] Conventional Free Air Thermal Current
12 A
Breaking Capacity
120 kA 400 V AC-21A) || 120 kA 400 V AC-22A) || 120 kA 400 V AC-23A)
Ip Degree Of Protection
IP65
Marking
0 - 1
[Icm] Rated Short-Circuit Making Capacity
0.5 kA 400 V at Ipeak
Handle Colour
red
Electrical Durability
30000 cycles DC-1 to 5 || 50000 cycles AC-21
[Icw] Rated Short-Time Withstand Current
140 A 400 V 1 s
Contacts Type And Composition
3 NO
Fixing Mode
hole 22.5 mm handle
Suitability For Isolation
yes
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Device Short Name
VCDN
Intermittent Duty Class
30
Making Capacity
120 A 400 V AC-21A || 120 A 400 V AC-22A || 120 A 400 V AC-23A
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Network Type
AC || DC
Protective Treatment
TC
Handle Front Plate Colour
yellow
Device Composition
handle || switch
Mechanical Robustness
vibrations 10 to 150 Hz 5 gn) IEC 60068-2-6 || shocks 11 ms 15 gn) IEC 60068-2-27
[Uimp] Rated Impulse Withstand Voltage
6 kV
Mechanical Durability
50000 cycles
Rated Conditional Short-Circuit Current
6 kA 400 V 12 A aM || 6 kA 400 V 12 A gG
Conventional Free Air Thermal Current
12 A

Description

Mini Main Emergswitch 12A
