  11. Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1

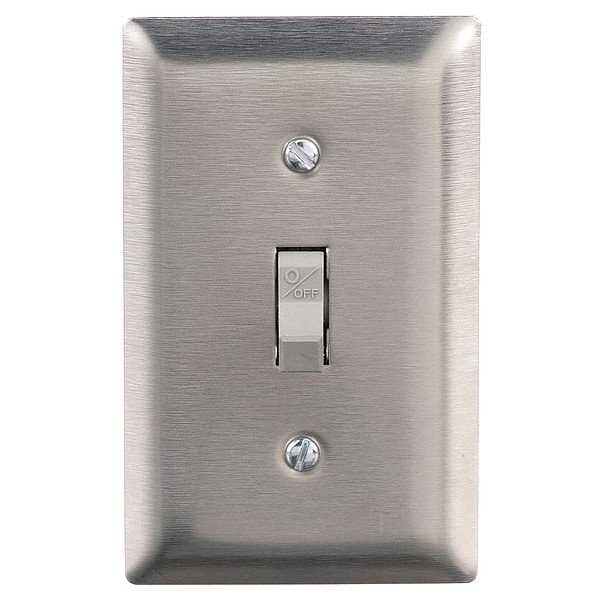

Square D Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1 2510KS2 - main

Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1

  • Mfr # 2510KS2

  • Zoro # G0594036

product price: $143.99
/ea
Free Shipping & Returns

Key Features

Operator
Toggle
Type
K
Depth
1.44 in
Height
4.5 in
Width
2.75 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2510KS2
Zoro #
G0594036
UPC #
785901554684
Country of Origin
United States

Dimensions

Depth
1.44 in
Height
4.5 in
Width
2.75 in
Overall Depth
2.5 in
Overall Height
4.5 in
Overall Width
2.75 in

Details

Operator
Toggle
Type
K
Item
Manual Motor Switch
Number of Poles
3
Description/Special Features
Stainless Steel Flush Plate
HP @ 1 Phase - 230V
7 1/2 hp
Standards
UL, CSA
Phase Loss Sensitivity
No
HP @ 3 Phase - 460-575V
10 hp
Local Signalling
no indicator
[Ue] Rated Operational Voltage
600 V AC || 230 V DC
Motor Starter Type
non reversing
Maximum Horse Power Rating
2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
Phase
3
Awg Gauge
AWG 14 to AWG 10 copper
Horsepower @ Three Phase - 600V AC
10 hp
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 480V AC
10 hp
Terminal Connection Type
Screw
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Includes Pilot Light
No
Horsepower @ Single Phase - 120V AC
2 hp
Starter Style
NEMA
Series
Type K
NEMA Enclosure Rating
NEMA 1
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Mounting Style
Flush
Resistance Properties
Temperature Resistant
Horsepower @ 230V DC
1 1/2 hp
Current AC
30 A

Description

Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Three Phase - 600V AC 10 hp, Includes Pilot Light No, Number of Poles 3, Operator Toggle Switch, Phase Three, Starter Style NEMA, Terminal Connection Type Screw Terminals, Maximum Voltage Rating 230V DC, 600V AC
