Specifications
Product Information
MFR #
2510FW1H
Zoro #
G0851326
UPC #
785901554349
Country of Origin
Mexico
Dimensions
Depth
4.25 in
Height
4.38 in
Width
3 in
Details
Item

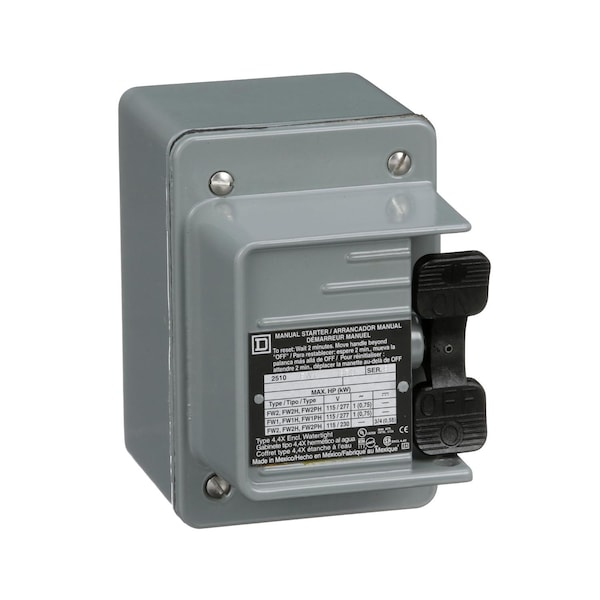

Manual Starter 277Vac
Control Type
toggle switch (with lock-off)
Reset
manual
Thermal Overload Type
melting alloy
Maximum Horse Power Rating
1 hp 115 V AC || 1 hp 230 V AC || 1 hp 277 V AC
Electrical Connection
screw clamp terminals
Product Or Component Type
Single Unit Manual Starter
Awg Gauge
AWG 14 to AWG 12 copper
Cable Entry
0.75 NPT (top and bottom)
Poles Description
1P
[Ue] Rated Operational Voltage
277 V AC
Product Certifications
UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Nema Degree Of Protection
NEMA 4 die cast zinc alloy standard size
Line Rated Current
16 A
Motor Starter Type
non reversing
Phase
1 phase
Local Signalling
no indicator
Description
Manual Starter 277Vac
