  13. Master NEMA Control Relay, 4NO, 120VAC, 20A

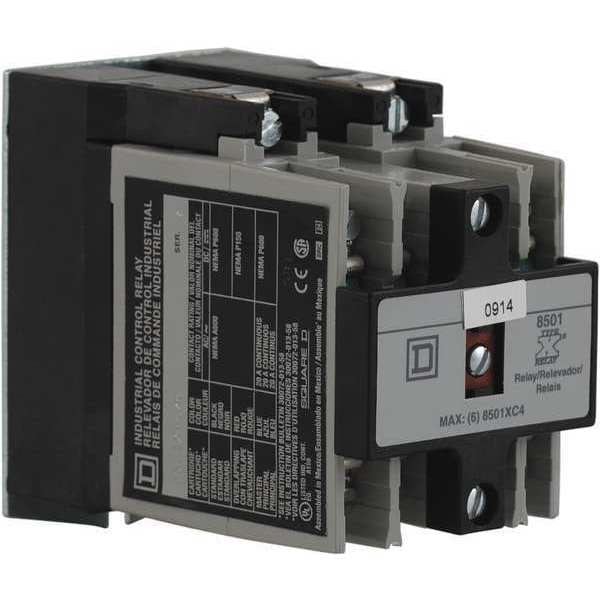

Square D Master NEMA Control Relay, 4NO, 120VAC, 20A 8501XMO40V02 - main

Master NEMA Control Relay, 4NO, 120VAC, 20A

  • Mfr # 8501XMO40V02

  • Zoro # G1459351

product price: $383.99
/ea
Free Shipping & Returns

Key Features

Coil Volts
120V AC
Hz
50/60
Response Time
15 msec (Pick-Up Time), 16 msec (Drop-Out Time)
Body Depth - Relay
3.95 in
Contact Amp Rating (Resistive)
20A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501XMO40V02
Zoro #
G1459351
UPC #
785901743446
Country of Origin
Mexico

Dimensions

Body Depth - Relay
3.95 in
Overall Height - Relay
3.5 in
Body Width - Relay
2.23 in
Body Height - Relay
3.5 in
Depth
3.95 in
Width
2.23 in
Height
3.5 in
Lead Size
18 AWG
Body Width
2.23 in
Overall Height
3.5 in
Body Depth
3.95 in
Body Height
3.5 in

Details

Item
NEMA Control Relay
Coil Volts
120V AC
Hz
50/60
Response Time
15 msec (Pick-Up Time), 16 msec (Drop-Out Time)
Contact Amp Rating (Resistive)
20A
Features
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
Standards
CSA Certified, RoHS Compliant, UL Listed
Accessory Group
F
Number of Pins - Relay
10
AC Contact Rating - Relay
20A @ 120/240/480/600V
Mounting
Panel
Contact Material
Silver Cadmium Oxide
Mounting - Relay
Surface
Item - Relay
Master NEMA Style Control Relay
Contact Form - Relay
(4) SPST-NO
Contact Form
4NO
Power Consumption - Relay
23.0 VA
DC Contact Rating - Relay
5A @ 125/250V
Hz - Electrical
50 Hz, 60 Hz
Electrical Connection
Screw Clamp
Operating Time
15 ms - pick-up || 16 ms - drop-out
Poles Description
4P
Line Rated Current
20 A AC
Relay Type
master
Ambient Air Temperature For Operation
-40-160 °F
Maximum Switching Voltage
600 V AC
Mounting Support
panel
[Uc] Control Circuit Voltage
110 V AC 50 Hz || 120 V AC 60 Hz
Contacts Type And Composition
4 NO 4 master contact cartridges
Product Or Component Type
relay
Product Certifications
CE || UL Listed || CSA
Current Rating
20 A
Compatible with Series
8501 Type X Latching Control Relays
Frequency
50/60 Hz
Maximum Operating Temperature
160 Degrees F
Mounting Style
Surface
Relay Style
NEMA
Coil Voltage
110/120V AC
Minimum Operating Temperature
-40 Degrees F
Contact Rating (AC)
10 A @ 600V
Input Voltage
110/120V AC
Power Consumption
23 VA
Number of Pins
10

Description

NEMA Control Relay, Current Rating 20 A, Contact Form 4NO, Coil Voltage 110/120V AC, Contact Rating (AC) 20 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 23 VA, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 50/60 Hz, Body Depth 3.95 in, Body Height 3.5 in, Body Width 2.23 in, Contact Material Silver Cadmium Oxide, Input Voltage 110/120V AC, Lead Size 18 AWG
