Shop SQUARE D

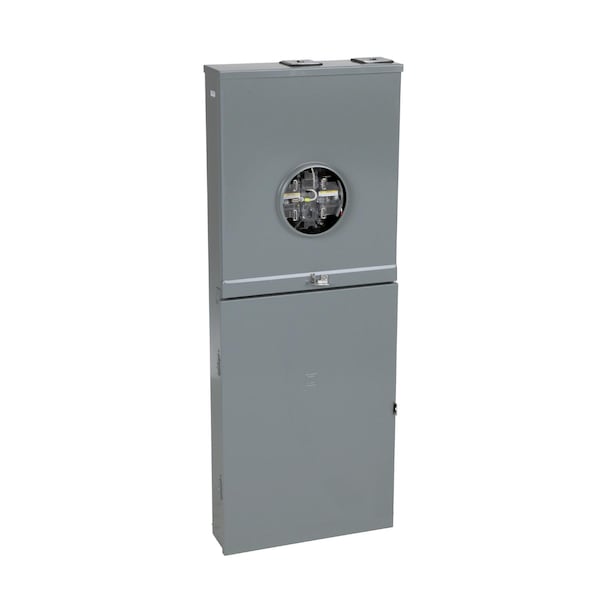

Meter Main, RC, 30 Spaces, 200A, Main Lug

  • Mfr # RC3040M200SL

  • Zoro # G000422373

product price:  $5,416.99
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
30
Amps
200 A
Short Circuit Current Rating
22kA
Height
48.62 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RC3040M200SL
Zoro #
G000422373
UPC #
-
Country of Origin
Mexico

Dimensions

Height
48.62 in
Width
18.35 in
Depth
6.05 in
Min. Wire Size
AWG 6 to 350 kcmil (aluminium/copper) line side; AWG 8 to AWG 2/0 (aluminium/copper) service ground

Details

Item
Meter Main
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
30
Amps
200 A
Short Circuit Current Rating
22kA
Series
RC
For Use With
QO Circuit Breaker
Number Of Tandem Circuit Breakers
10
Service Disconnect Rated Current
200 A
Device Mounting
surface
Branch Circuit Breaker Rated Current
200 A
Device Composition
service disconnect (factory installed)
Service Feed Location
OH || UG
Meter Socket Type
ringless
Bypass Type
lever bypass
Tightening Torque
main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper || service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper || service ground 40 lb.in, AWG 8, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
Hub Type
A
Number Of Circuits
40
Electrical Connection
lugs line side || lugs service ground
Bus Rating
200.0 A

Description

LEVER BY-PASS HOM ALL-IN-ONE OH/UG 200A
