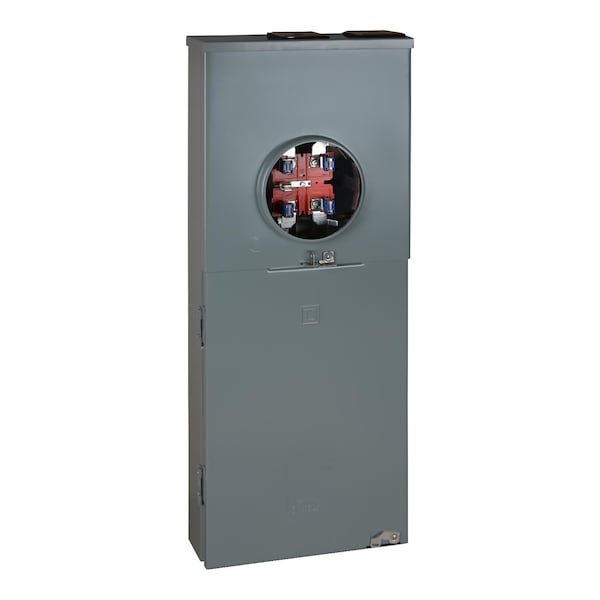

Meter Main, RC, 8 Spaces, 100A, Main Lug, 1 Phase
Mfr # RC816F100CH
Zoro # G3298982
product price:Â
$
1,230.99
/ea
Free Shipping & Returns
Key Features
Main Circuit Breaker or Main Lug
Main Lug
Amps
100 A
Phase
1
Short Circuit Current Rating
22kA
Height
35.13 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RC816F100CH
- Zoro #
- G3298982
- UPC #
- -
- Country of Origin
- Mexico
- Item
- Meter Main
- Main Circuit Breaker or Main Lug
- Main Lug
- Number of Spaces
- 8
- Amps
- 100 A
- Phase
- 1
- Short Circuit Current Rating
- 22kA
- Series
- RC
- Enclosure NEMA Rating
- NEMA 3R
- Standards
- UL E-6294
- Circuit Breaker Type
- Homeline
- Max. No. of Tandem Breakers
- 8
- Mounting Style
- surface
- For Use With
- QO Circuit Breaker, HOMELINE Mini Circuit Breaker, Series A Meter-Pak Accessory
- Tightening Torque
- Service Disconnect Rated Current
- 100 A
- Number Of Circuits
- 16
- Electrical Connection
- lugs line side || feed-thru lugs service ground
- Hub type
- A
- Ground Bar Kit
- service disconnect (factory installed)
- Bypass Type
- horn bypass
- Meter Socket Type
- ringless
Description
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This service entrance meter main is supplied with feed thru lugs and has provisions for branch circuit breakers This Homeline combination service entrance meter main unit has a ringless meter socket with horn bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2100VH which has a maximum rating of 100 A. Device has a 22 kA short circuit current rating. Load center has 8 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 35.13 inches tall, 14.37 inches wide and 4.67 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 12 AWG to 2/0 AWG copper or aluminum wire. This Homeline combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.
