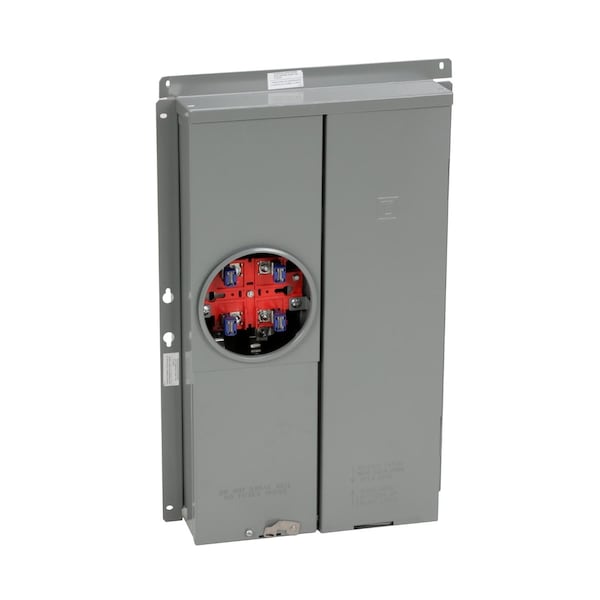

Square D Meter Main, SC, 16 Spaces, 100A, Main Lug SC1624M100F - main

Meter Main, SC, 16 Spaces, 100A, Main Lug

  • Mfr # SC1624M100F

  • Zoro # G3302729

product price:  $775.99
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
16
Amps
100A
Short Circuit Current Rating
10kA
Height
25.12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SC1624M100F
Zoro #
G3302729
UPC #
-
Country of Origin
Mexico

Dimensions

Height
25.12 in
Width
14.50 in
Depth
3.39 in
Min. Wire Size
AWG 6
Max. Wire Size
AWG 2/0 aluminium)line side

Details

Item
Meter Main
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
16
Amps
100A
Short Circuit Current Rating
10kA
Series
SC
Enclosure NEMA Rating
NEMA 3R
Max. No. of Tandem Breakers
8
Mounting Style
semi flush
Circuit Breaker Type
Homeline
For Use With
QO Circuit Breaker, HOMELINE Mini Circuit Breaker, Series A Meter-Pak Accessory
Bypass Type
no bypass
Service Disconnect Rated Current
100 A
Number Of Circuits
24
Ground Bar Kit
service disconnect (factory installed)
Meter Socket Type
ringed
Tightening Torque
main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || service ground 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
Hub type
B300 || A
Electrical Connection
lugs line side || lugs service ground

Description

Homeline All In One combination service
