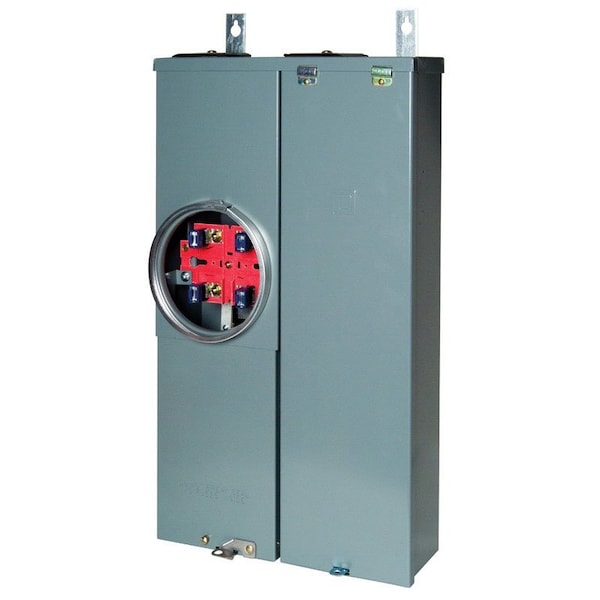

Meter Main, SC, 16 Spaces, 100A, Main Lug
Mfr # SC1624M100S
Zoro # G605810902
CAD Available
product price: $184.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
16
Short Circuit Current Rating
10kA
Height
26-1/2 in
Width
14.77 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- SC1624M100S
- Zoro #
- G605810902
- UPC #
- 785901308812
- Country of Origin
- Mexico
Dimensions
- Height
- 26-1/2 in
- Width
- 14.77 in
- Depth
- 5.20 in
- Max. Wire Size
- AWG 2/0 aluminium)line side
- Min. Wire Size
- AWG 6
Details
- CAD Available
- Yes
- Item
- Meter Main
- Main Circuit Breaker or Main Lug
- Main Lug
- Number of Spaces
- 16
- Amps
- 100 A
- Short Circuit Current Rating
- 10kA
- Series
- SC
- Mounting Style
- surface
- Circuit Breaker Type
- Homeline
- Max. No. of Tandem Breakers
- 8
- Bypass Type
- no bypass
- Meter Socket Type
- ringed
- Ground Bar Kit
- service disconnect (factory installed)
- Electrical Connection
- lugs line side || lugs service ground
- Service Disconnect Rated Current
- 100 A
- Number Of Circuits
- 24
- Hub type
- A
Description
The Square D surface mount CSED provides up to 125A metered service and a main circuit breaker or main lugs panel. The lightweight design makes it an ideal choice for smaller surface mount residential applications. These devices will accept up to a 125A maximum branch circuit breaker to accommodate larger residential loads or sub-feed requirements.
- • Accommodates larger residential loads with up to 125 ampere maximum branch breaker provisions
- • Accepts overhead or underground service feeds for maximum flexibility in meeting changing application requirements
- • More wire bend space allows for easy line side wiring
- • A 2.5 inch a hub provision above the right-side wire gutter provides easy exit for load center wires
- • Factory installed blade guides on line and load meter jaws ensure proper alignment of meter blades with meter jaws to prevent meter socket damage
- • 4.5 inch deep enclosures are lightweight and allow easy access to load center interior
