  9. Miniature Circuit Breaker, E FRAME Series, 100A, 3 Pole, 277/480V AC, 25kA at 120V AC

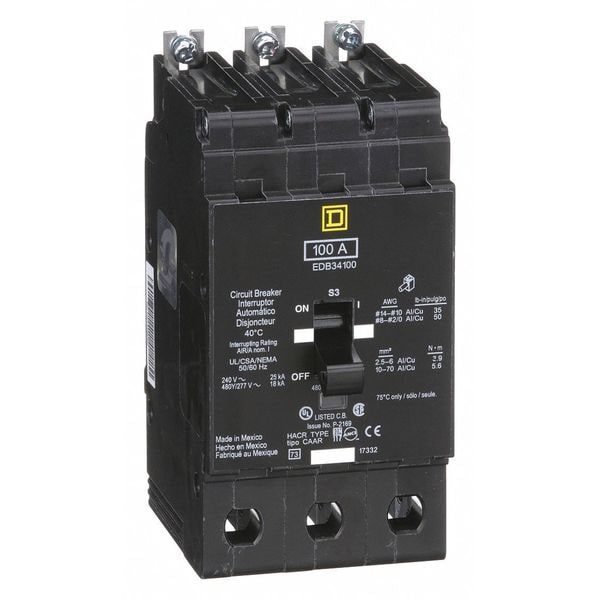

Square D Miniature Circuit Breaker, E FRAME Series, 100A, 3 Pole, 277/480V AC, 25kA at 120V AC EDB34100 - main

CAD Viewer & Download Files

Miniature Circuit Breaker, E FRAME Series, 100A, 3 Pole, 277/480V AC, 25kA at 120V AC

  • Mfr # EDB34100

  • Zoro # G1896036

CAD Available
product price: $804.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Series
E FRAME
Number of Poles
3
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EDB34100
Zoro #
G1896036
UPC #
785901875383
Country of Origin
Mexico

Dimensions

Frame Size
125A/EDB
Width
2.94 in
Depth
4.05 in
Height
5.66 in
Max. Wire Size
2 AWG
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Length
5.66 in

Details

Item
Miniature Circuit Breaker
Series
E FRAME
Amps
100A
Number of Poles
3
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
25kA at 120V AC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
Not Rated
Standards
cULus
For Use With
Square D NF Panelboards
Features
Mercury Free
Interrupt Rating
18 kA at 277/480Y/277V AC, 25 kA at 120/240V AC
High Amp Trip Setting
2300 A
Application
HACR rated Applications
Max. Operating Temp.
104 Degrees F
Compatible Panelboard/Load Center Series
NF
Breaking Capacity Code
D
Ambient Air Temperature For Operation
104°F (40°C)
Protection Type
Overload; Short-circuit
Product Destination
NF panelboard
Breaking Capacity
18 kA 277 V AC; 25 kA 240 V AC; 18 kA 480Y/277 V AC; 25 kA 120 V AC; 25 kA 120/240 V AC
Holding Current
1000 A
Module Type
E-Frame
Local Signalling
Trip indicator
Circuit Breaker Application
HACR rated
Tightening Torque
34.52 lbf.in (3.9 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 49.56 lbf.in (5.6 N.m) 0.02 to 0.11 in² (10 to 70 mm²) (AWG 8 to AWG 2/0)
AWG Gauge
AWG 12 to AWG 2/0 aluminium; AWG 14 to AWG 2/0 copper
Voltage
480Y/277 VAC
CAD Available
Yes

Description

Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
