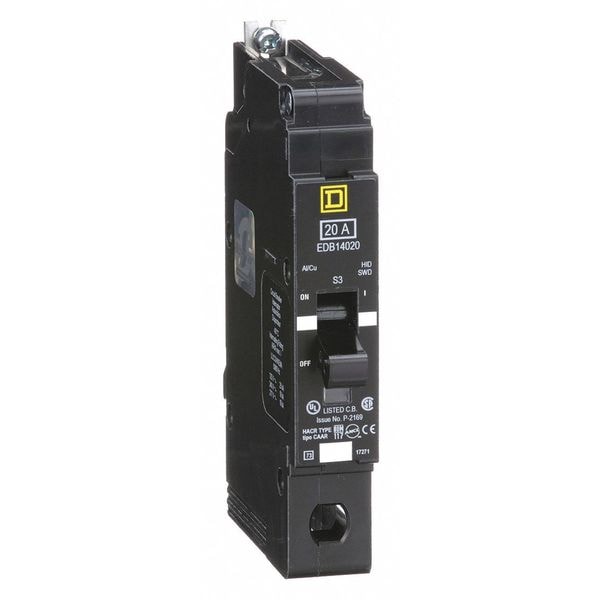

Miniature Circuit Breaker, E FRAME Series, 20A, 1 Pole, 277V AC, 25kA at 120V AC
Mfr # EDB14020
Zoro # G3369773
CAD Available
product price:Â $146.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
E FRAME
Number of Poles
1
AC Voltage Rating
277V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EDB14020
- Zoro #
- G3369773
- UPC #
- 785901878902
- Country of Origin
- Korea, Republic of
Dimensions
- Frame Size
- 125A/EDB
- Width
- 0.98 in
- Depth
- 4.05 in
- Height
- 5.66 in
- Min. Wire Size
- 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size
- 6 AWG
- Length
- 5.7 in
Description
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 277V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 120/240V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.7 in, Width 1 in, Depth 4.1 in, Max. Operating Temp. 104 Degrees F
