  9. Miniature Circuit Breaker, E FRAME Series, 35A, 3 Pole, 277/480V AC, 65kA at 120V AC

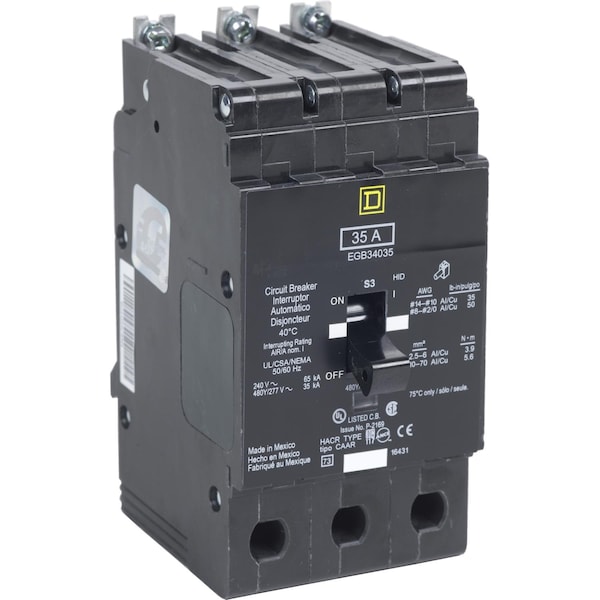

Square D Miniature Circuit Breaker, E FRAME Series, 35A, 3 Pole, 277/480V AC, 65kA at 120V AC EGB34035 - main

Miniature Circuit Breaker, E FRAME Series, 35A, 3 Pole, 277/480V AC, 65kA at 120V AC

  • Mfr # EGB34035

  • Zoro # G0845960

product price: $957.99
/ea
Free Shipping & Returns

Key Features

Series
E FRAME
Amps
35A
Number of Poles
3
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EGB34035
Zoro #
G0845960
UPC #
785901311164
Country of Origin
Mexico

Dimensions

Frame Size
125A/EGB
Width
2.94 in
Depth
4.05 in
Height
5.66 in
Max. Wire Size
2/0 AWG (Cu/Al)
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)

Details

Item
Miniature Circuit Breaker
Series
E FRAME
Amps
35A
Number of Poles
3
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
65kA at 120V AC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Features
Mercury Free
Interrupt Rating
35 kA at 480Y/277V AC, 65 kA at 120/240V AC
High Amp Trip Setting
1800 A
Standards
cULus
Application
HID rated Applications, HACR rated Applications
For Use With
NF Panelboard
Ambient Air Temperature For Operation
104°F (40°C)
Tightening Torque
34.52 lbf.in (3.9 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 49.56 lbf.in (5.6 N.m) 0.02 to 0.11 in² (10 to 70 mm²) (AWG 8 to AWG 2/0)
Breaking Capacity
35 kA 277 V AC; 65 kA 240 V AC; 35 kA 480Y/277 V AC; 65 kA 120 V AC; 65 kA 120/240 V AC
Local Signalling
Trip indicator
Module Type
E-Frame
AWG Gauge
AWG 12 to AWG 2/0 aluminium; AWG 14 to AWG 2/0 copper
Protection Type
Overload; Short-circuit
Breaking Capacity Code
G
Holding Current
630 A
Circuit Breaker Application
HID rated; HACR rated

Description

Miniature Circuit Breaker 480Y/277V 35A, Series EGB
