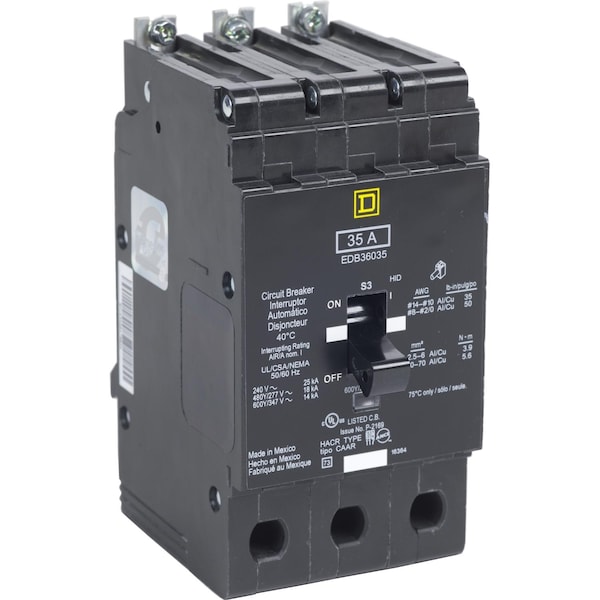

Miniature Circuit Breaker, E FRAME Series, 70A, 3 Pole, 600V AC, 25kA at 120V AC

  • Mfr # EDB36070

  • Zoro # G0845848

product price:
$
911.99
/ea
Free Shipping & Returns

Key Features

Series
E FRAME
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EDB36070
Zoro #
G0845848
UPC #
785901407010
Country of Origin
Mexico

Dimensions

Frame Size
125A/EDB
Width
2.94 in
Depth
4.05 in
Height
5.66 in
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Max. Wire Size
2/0 AWG (Cu/Al)

Details

Item
Miniature Circuit Breaker
Series
E FRAME
Amps
70 A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
25kA at 120V AC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Interrupt Rating
14 kA at 600Y/347V AC
Standards
cULus
Application
HACR rated Applications
High Amp Trip Setting
1800 A
Features
Mercury Free
For Use With
NF Panelboard
Ambient Air Temperature For Operation
104°F (40°C)
Module Type
E-Frame
Local Signalling
Trip indicator
Protection Type
Overload; Short-circuit
AWG Gauge
AWG 12 to AWG 2/0 aluminium; AWG 14 to AWG 2/0 copper
Tightening Torque
34.52 lbf.in (3.9 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 49.56 lbf.in (5.6 N.m) 0.02 to 0.11 in² (10 to 70 mm²) (AWG 8 to AWG 2/0)
Holding Current
630 A
Circuit Breaker Application
HACR rated
Breaking Capacity Code
D
Breaking Capacity
14 kA 600Y/347 V AC

Description

Miniature Circuit Breaker 600V 70A, Series EDB
