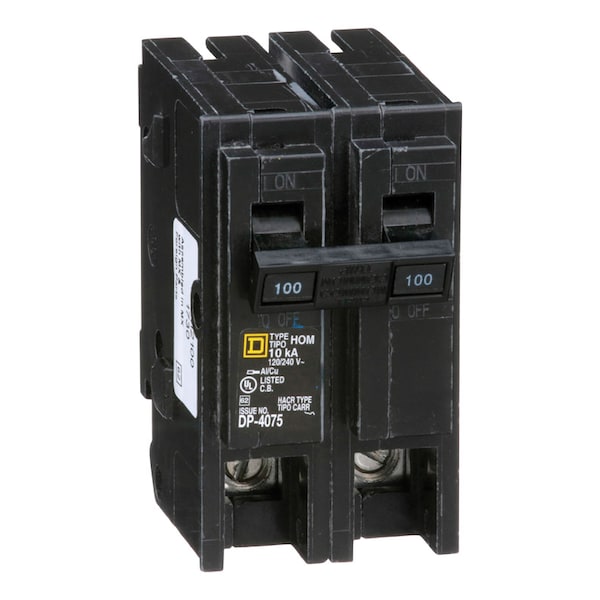

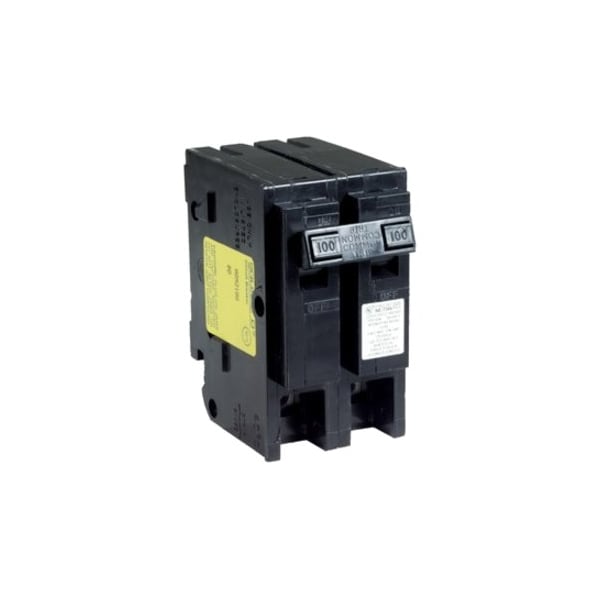

Miniature Circuit Breaker, HOM Series, 100A, 2 Pole, 120/240V AC, 10kA
- Mfr # HOM2100CP
- Zoro # G2695488
product price:
$
80.99
/ea
Key Features
Series
HOM
Amps
100 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HOM2100CP
- Zoro #
- G2695488
- UPC #
- 47569062858
- Country of Origin
- Mexico
Dimensions
- Width
- 2 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Max. Wire Size
- 2/0 AWG (Cu/Al)
- Min. Wire Size
- 4 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- HOM
- Amps
- 100 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Common
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Standards
- UL Listed
- Application
- HACR rated Applications
- Features
- Mercury Free
Description
MINIATURE CIRCUIT BREAKER 120/240V 100A. Line Rated Current: 100 A.
- • Double Pole
- • 1" Format
- • Two-pole common trip
- • Compatible w/ Homeline load centers & CSED devices
- • Plug-on design, easy to install
- •
Documents & Resources
