Shop SQUARE D
See all product information

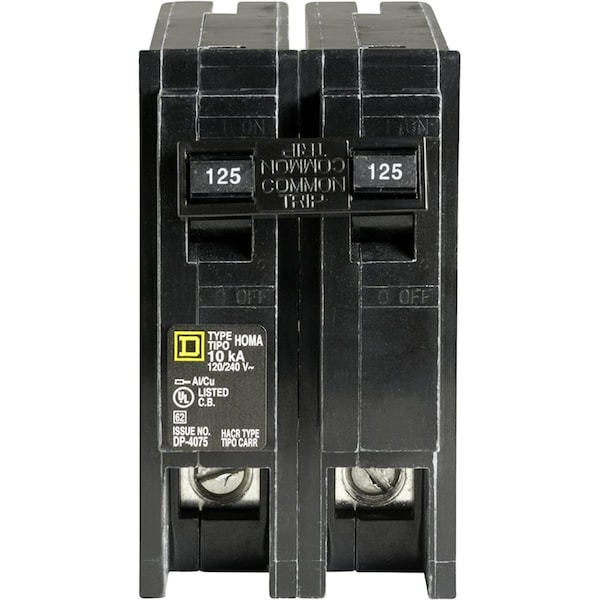

Miniature Circuit Breaker, HOM Series, 125A, 2 Pole, 120/240V AC, 10kA
Mfr # HOM2125CP
Zoro # G205265980
product price: $171.99
/ea
Free Shipping & Returns
Key Features
Series
HOM
Amps
125 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- HOM2125CP
- Zoro #
- G205265980
- UPC #
- 47569062865
- Country of Origin
- Mexico
Dimensions
- Width
- 2 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Max. Wire Size
- 2/0 AWG (Cu/Al)
- Min. Wire Size
- 4 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- HOM
- Amps
- 125 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Thermal Magnetic
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Features
- Mercury Free
- Application
- HACR rated Applications
- Standards
- UL Listed
Description
Use this Homeline 125 Amp, 2-Pole Circuit Breaker to protect circuitry in load centers and CSEDs from overloads or short circuits. This breaker is designed with a thermal-magnetic tripping mechanism for excellent detection of both short surges and long-term over currents. It is rated for 120/240 VAC and has a 10K AIR.
- • Square D breaker protects against overloads and short-circuits
- • For residential/commercial use to protect entire branch circuits
- • Compatible with Homeline electrical panel and CSEDs with 2 spaces
- • Compatible with Square D Homeline breaker boxes and CSED devices
- • Thermal-magnetic tripping mechanism, 1 in. format
- • For installation in 120/240-Volt AC systems and 10K AIR
