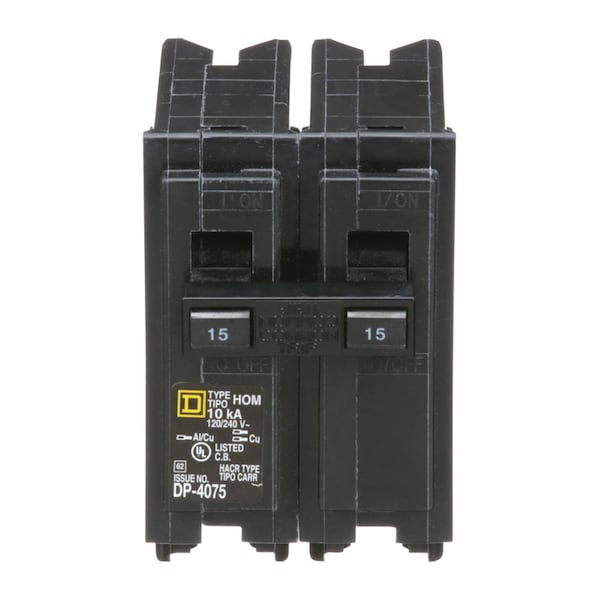

Miniature Circuit Breaker, HOM Series, 15A, 2 Pole, 120/240V AC, 10kA
Mfr # HOM215CP
Zoro # G1770611
Key Features
Specifications
Product Information
- MFR #
- HOM215CP
- Zoro #
- G1770611
- UPC #
- 47569062759
- Country of Origin
- Mexico
Dimensions
- Width
- 2 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Min. Wire Size
- 14 AWG (Cu/Al), 14 AWG (Cu)
- Max. Wire Size
- 8 AWG (Cu/Al), 10 AWG (Cu)
Details
- Item
- Miniature Circuit Breaker
- Series
- HOM
- Amps
- 15 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Tandem
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Standard
- Terminal Connection
- Clamp
- DC Voltage Rating
- Not Rated
- Standards
- UL Listed
- Application
- HACR rated Applications
- Features
- Mercury Free
Description
The Square D by Schneider Electric Homeline 15 amp Two-Pole Circuit Breaker is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. A The ANSI-certified and UL-listed unit is rated for 120/240V AC and 10000 AIR. A Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. A Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
- • Plug-on design, easy to install
- • Miniture Circuit Breaker 120/240V 15A
- • Compatible with Homeline load centers and CSED devices
- • 120/240 volt AC
- • 10000 AIR
- •
