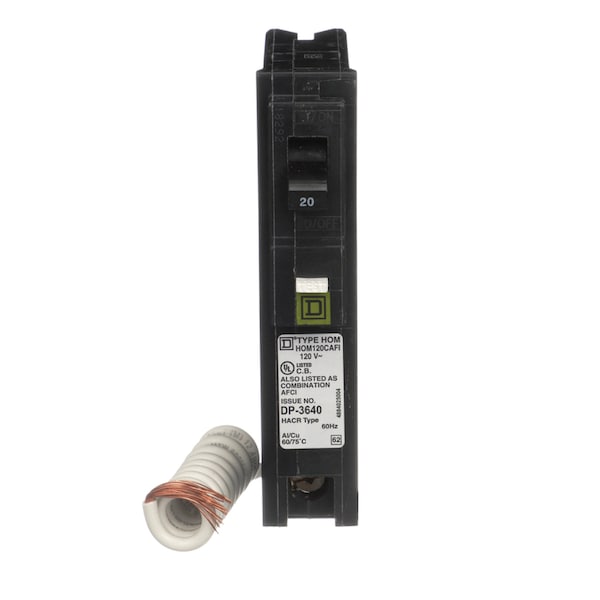

Miniature Circuit Breaker, HOM Series, 20A, 1 Pole, 120V AC, 10kA
Mfr # HOM120CAFIC
Zoro # G8660378
Key Features
- Series HOM
- Amps 20A
- Number of Poles 1
- AC Voltage Rating 120V AC
- Circuit Breaker Type Standard

Product Information

- Brand Square D
- MFR # HOM120CAFIC
- Zoro # G8660378
- UPC # 785901477150
- Country of Origin China
- Category Circuit Breakers
Dimensions
Width | 1 in |
Depth | 2.98 in |
Height | 3.13 in |
Max. Wire Size | 8 AWG (Cu/Al), 10 AWG (Cu) |
Min. Wire Size | 14 AWG (Cu/Al), 14 AWG (Cu) |
Details
Item | Miniature Circuit Breaker |
Series | HOM |
Amps | 20A |
Number of Poles | 1 |
AC Voltage Rating | 120V AC |
Circuit Breaker Type | Standard |
Circuit Breaker Mounting Style | Plug In |
Max. AIR Rating | 10kA |
Terminal Connection | Clamp |
DC Voltage Rating | Not Rated |
Features | Mercury Free |
Standards | UL Listed |
Application | HACR rated Applications |
Description
The Square D by Schneider Electric Homeline 20 amp One-Pole Combination Arc-Fault Circuit Interrupting (CAFCI) Circuit Breaker is for use to help protect your wires from arcing faults and is intended for overload and short-circuits protection of your electrical system. Now standard in all Square D brand CAFCI circuit breakers, Time-Saver Diagnostics provide advanced trip indication technology, helping identify the type of fault that has occurred faster. Time-Saver Diagnostics helps take away the guess work and provides diagnostic assistance by identifying the type of fault that last occurred. It saves money by reducing troubleshooting time, simple to use, accurate and reliable. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
- • Homeline 20 amp single-pole combination AFCI circuit breaker
- • Compatible with Homeline load centers and CSED devices
- • 120/240 volt AC
- • 10000 AIR
- •
