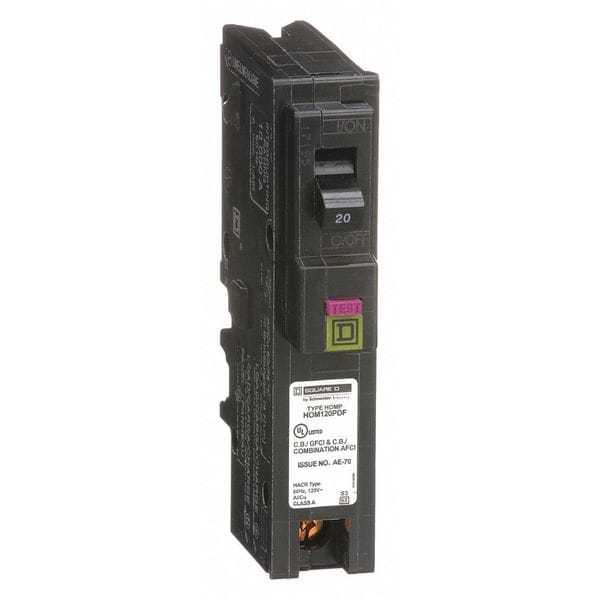

Miniature Circuit Breaker, HOMELINE Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC
Mfr # HOM120PDF
Zoro # G4564205
product price:Â
$
84.29
/ea
Key Features
Series
HOMELINE
Amps
20 A
Number of Poles
1
AC Voltage Rating
120V AC
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HOM120PDF
- Zoro #
- G4564205
- UPC #
- 785901978343
- Country of Origin
- Korea, Republic of
Dimensions
- Width
- 1 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Max. Wire Size
- 8 AWG (Cu/Al), 10 AWG (Cu)
- Min. Wire Size
- 14 AWG (Cu/Al), 14 AWG (Cu)
Details
- Item
- Miniature Circuit Breaker
- Series
- HOMELINE
- Amps
- 20 A
- Number of Poles
- 1
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Plug-on Neutral Combination ARC Fault and Ground Fault Class A6 mA
- Phase
- 1
- Circuit Breaker Mounting Style
- Plug-on Neutral
- Max. AIR Rating
- 10kA at 120V AC
- Terminal Connection
- Clamp
- DC Voltage Rating
- Not Rated
- Features
- Mercury Free
- Application
- HACR rated Applications
- For Use With
- Homeline Plug-on Neutral Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
- Standards
- UL Listed
Description
Circuit Breaker,20A,1-Pole,Dual Function
