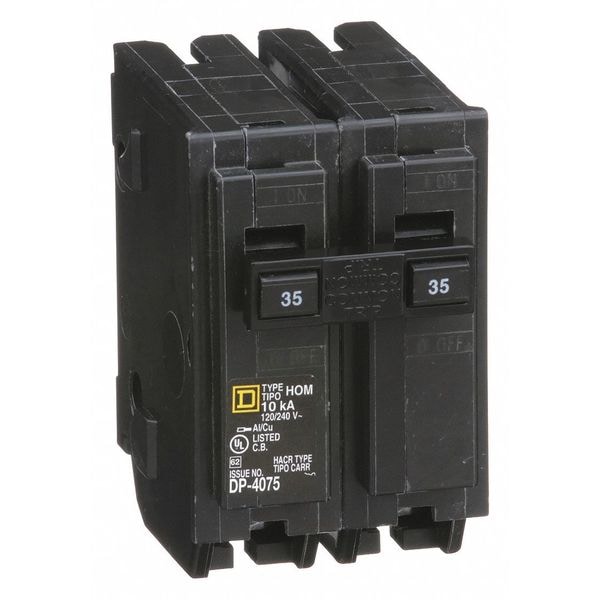

Miniature Circuit Breaker, HOMELINE Series, 35A, 2 Pole, 240V AC, 10kA at 240V AC
Mfr # HOM235
Zoro # G2550974
CAD Available
product price:Â
$
19.89
/ea
Key Features
CAD Drawing
Series
HOMELINE
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HOM235
- Zoro #
- G2550974
- UPC #
- 785901065494
- Country of Origin
- Korea, Republic of
- CAD Available
- Yes
- Item
- Miniature Circuit Breaker
- Series
- HOMELINE
- Amps
- 35A
- Number of Poles
- 2
- AC Voltage Rating
- 240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Paddle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 240V AC
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- For Use With
- Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
- Standards
- CSA Certified, HACR, UL Listed
- Features
- Mercury Free
- Application
- HACR rated Applications
- Max. Operating Temp.
- 104 Degrees F
- Compatible Panelboard/Load Center Series
- HOM
- Min. Operating Temp.
- 77 Degrees F
- Voltage
- 120/240 VAC
Description
Miniature Circuit Breaker, Amps 35 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120/240V AC, For Use With Homeline Load Center, Terminal Connection Lug, Frame Size 100A/HOM, Length 3.1 in, Width 2 in, Depth 3 in, Min. Operating Temp. 77 Degrees F
