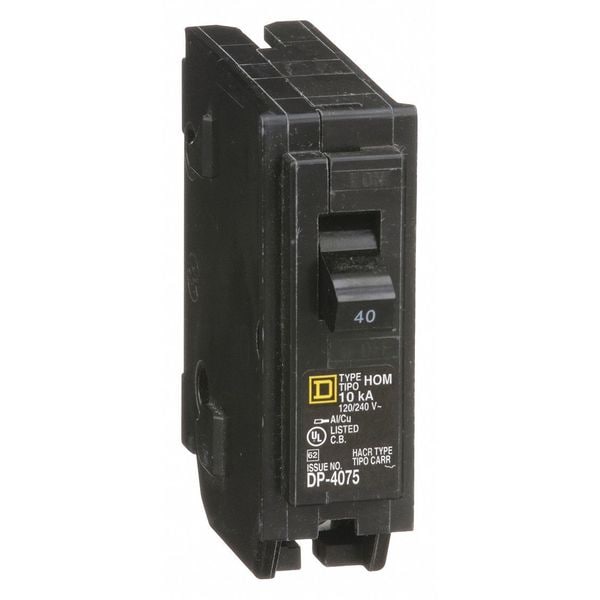

Miniature Circuit Breaker, HOMELINE Series, 40A, 1 Pole, 120V AC, 10kA at 120V AC
Mfr # HOM140
Zoro # G2681883
CAD Available
product price: $13.99
/eaKey Features
CAD Drawing
Series
HOMELINE
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
HOM140
Zoro #
G2681883
UPC #
785901065241
Country of Origin
Mexico
Dimensions
Frame Size
100A/HOM
Width
1 in
Depth
2.98 in
Height
3.13 in
Min. Wire Size
8 AWG
Max. Wire Size
2 AWG
Wire Size
1 x AWG 8 to AWG 2 ( aluminium/copper )
Length
3.13 in
Description
Miniature Circuit Breaker, Amps 40 A, AC Voltage Rating 120V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120V AC, For Use With Homeline Load Center, Terminal Connection Lug, Frame Size 100A/HOM, Length 3.13 in, Width 1 in, Depth 2.98 in, Min. Operating Temp. 77 Degrees F
