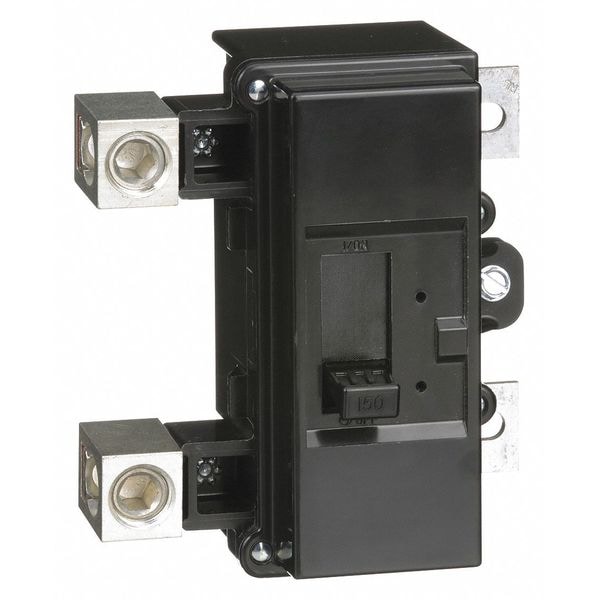

Miniature Circuit Breaker, QO Series, 150A, 2 Pole, 120/240V AC, 22kA at 120/240V AC
Mfr # QOM2150VH
Zoro # G3383807
Key Features
Specifications
Details
- MFR #
- QOM2150VH
- Zoro #
- G3383807
- UPC #
- 785901004059
- Country of Origin
- Indonesia
- CAD Available
- Yes
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 150A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Main Breaker
- Phase
- 1
- Circuit Breaker Actuator
- Paddle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 22kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Standards
- UL Listed
- For Use With
- Homeline Load Center, QO Load Center
- Features
- Mercury Free
- Application
- Primary Main Breaker
- Interrupt Rating
- 22 kA at 120/240V AC
- Min. Operating Temp.
- 77 Degrees F
- Max. Operating Temp.
- 104 Degrees F
- Compatible Panelboard/Load Center Series
- QO
- Voltage
- 120/240 VAC
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 150A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of accessories are available. The lug connectors will accept one 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.60 inches, a width of 3.60 inches and a depth of 5.07 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
