Shop SQUARE D

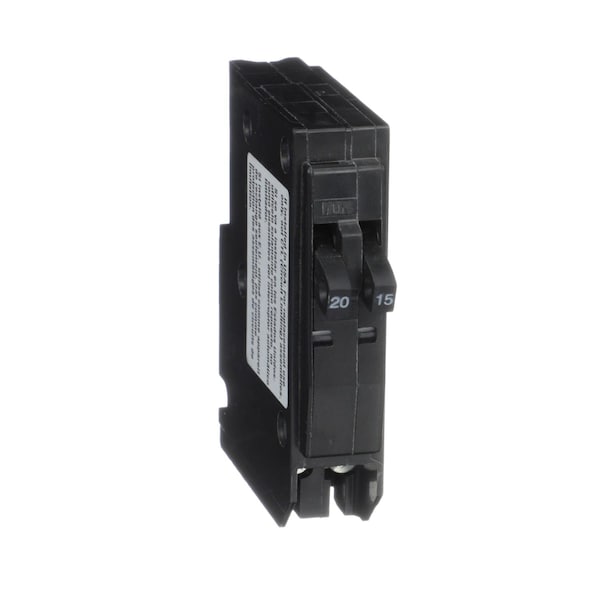

Miniature Circuit Breaker, QO Series, 15A, 1x1, 1x1 Pole, 240V AC, 10kA at 120/240V AC

  • Mfr # QO2015

  • Zoro # G0842707

product price:  $68.59
/ea

Key Features

Series
QO
Amps
15 A
Number of Poles
1x1, 1x1
AC Voltage Rating
240V AC
Circuit Breaker Type
Tandem
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QO2015
Zoro #
G0842707
UPC #
785901409649
Country of Origin
Mexico

Dimensions

Frame Size
QO
Width
19 mm
Depth
74 mm
Height
82 mm
Max. Wire Size
8 AWG (Cu/Al)
Min. Wire Size
14 AWG (Cu/Al)
Wire Size
AWG 14 to AWG 8 copper or aluminium

Details

Item
Miniature Circuit Breaker
Series
QO
Amps
15 A
Number of Poles
1x1, 1x1
AC Voltage Rating
240V AC
Circuit Breaker Type
Tandem
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal Magnetic, Trip Free
Instantaneous Trip
Trip Free
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Application
HACR rated Applications
Interrupt Rating
10 kA at 120/240V AC
Features
Mercury Free
Standards
UL Listed, CSA
Ratings
HACR rated
Certifications
UL Listed; CSA
Ambient Temperature Rating
104°F (40°C)
Tightening Torque
24.78 lbf.in (2.8 N.m)
Number Of Panel Spaces
1

Description

Miniature Circuit Breaker 240V 20/15A, Series QO
