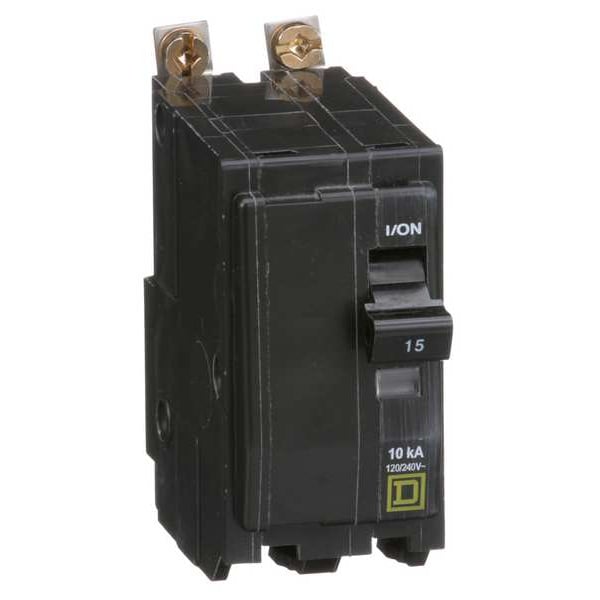

Miniature Circuit Breaker, QO Series, 15A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QOB215
Zoro # G1090643
CAD Available
product price:Â
$
79.99
/ea
Key Features
CAD Drawing
Series
QO
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QOB215
- Zoro #
- G1090643
- UPC #
- 785901416821
- Country of Origin
- Korea, Republic of
Dimensions
- Frame Size
- 100A/QO
- Width
- 1-1/2 in
- Depth
- 2.91 in
- Height
- 2.99 in
- Max. Wire Size
- 8 AWG
- Min. Wire Size
- 14 AWG
- Length
- 3 in
Description
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 1.5 in, Depth 2.9 in, Min. Operating Temp. 77 Degrees F
