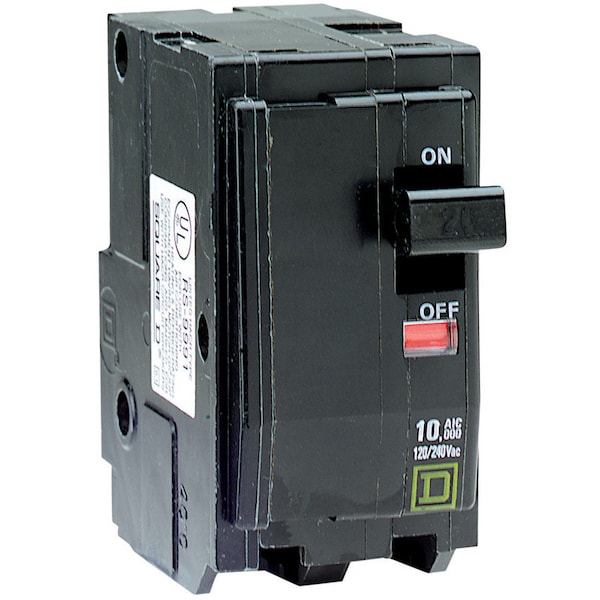

Miniature Circuit Breaker, QO Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO220C
Zoro # G2697454
product price: $41.55
/eaKey Features
Series
QO
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
QO220C
Zoro #
G2697454
UPC #
47569522178
Country of Origin
United States
Dimensions
Frame Size
QO
Width
1-1/2 in
Depth
2.91 in
Height
2.99 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
8 AWG (Cu/Al)
Details
Item
Miniature Circuit Breaker
Series
QO
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Terminal Connection
Pressure Plate
DC Voltage Rating
Not Rated
Standards
UL Listed, CSA
Features
Mercury Free
Application
HACR rated Applications
Interrupt Rating
10 kA at 120/240V AC
Instantaneous Trip
Trip Free
Trip Type
Thermal Magnetic, Trip Free
Description
All QO circuit breakers are equipped with the exclusive visi-trip indicator. When a QO visi-trip circuit breaker trips, the handle snaps to a midpoint position between “Off” and “On” and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers.
- • QO 20 amp two-pole circuit breaker
- • Qwik-open circuit breaker protection (trips within 1/60th of a second) on 15A and 20A single-pole breakers at currents as low as 150A to 200A
- • Trips thermally (in an overload situation) or magnetically (under a short circuit situation)
- • Quick make quick break mechanism
- • SWD (switching duty) rating on 15A and 20A single-pole breakers
- • Wire terminals UL listed for 2 branch wires
