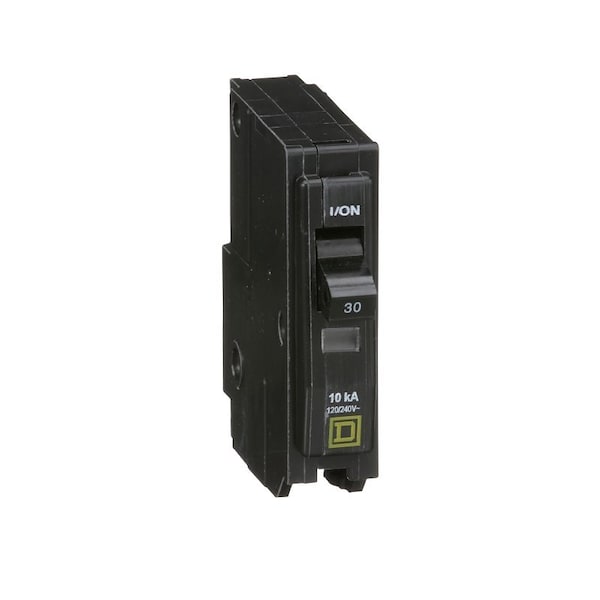

Miniature Circuit Breaker, QO Series, 30A, 1 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO130CP
Zoro # G507388950
product price:Â
$
24.85
/ea
Key Features
Series
QO
Amps
30 A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QO130CP
- Zoro #
- G507388950
- UPC #
- 47569838002
- Country of Origin
- United States
Dimensions
- Frame Size
- QO
- Width
- 19 mm
- Depth
- 74 mm
- Height
- 76 mm
- Min. Wire Size
- 14 AWG (Cu/Al)
- Max. Wire Size
- 8 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 30 A
- Number of Poles
- 1
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Fixed
- Terminal Connection
- Pressure Plate
- DC Voltage Rating
- Not Rated
- Application
- HACR rated Applications
- Standards
- UL Listed, CSA
- Features
- Mercury Free
- Interrupt Rating
- 10 kA at 120/240V AC
Description
All QO circuit breakers are equipped with the VisiTrip indicator When a VisiTrip circuit breaker trips, the handle snaps to a midpoint position between OFF and ON and a highly visible, red indicator easily identifies the tripped breaker This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 60 different circuit breakers QO circuit breakers have features no other manufacturer can offer They come in many different sizes and can meet the needs of virtually every function in your home or business These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection
