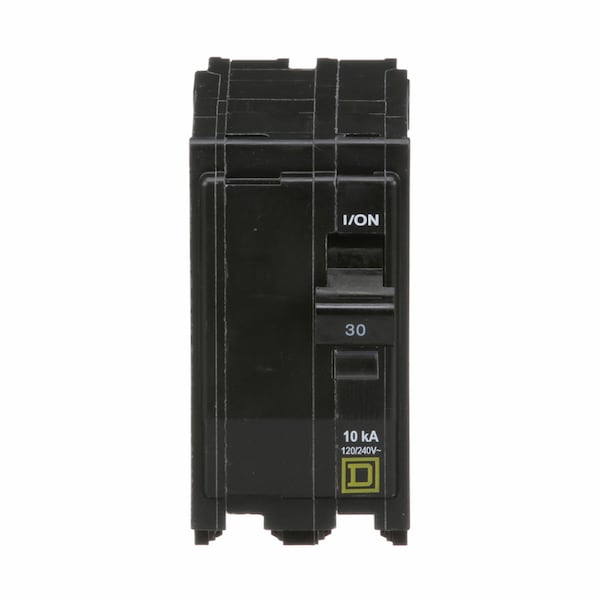

Miniature Circuit Breaker, QO Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO230C
Zoro # G1921364
product price:
$
41.29
/ea
Key Features
Series
QO
Amps
30 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QO230C
- Zoro #
- G1921364
- UPC #
- 47569522185
- Country of Origin
- United States
Dimensions
- Frame Size
- QO
- Width
- 1-1/2 in
- Depth
- 2.91 in
- Height
- 2.99 in
- Min. Wire Size
- 14 AWG (Cu/Al)
- Max. Wire Size
- 8 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 30 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Pressure Plate
- DC Voltage Rating
- Not Rated
- Interrupt Rating
- 10 kA at 120/240V AC
- Features
- Mercury Free
- Application
- HACR rated Applications
- Standards
- UL Listed, CSA
Description
All QO circuit breakers are equipped with the exclusive visi-trip indicator. When a QO visi-trip circuit breaker trips, the handle snaps to a midpoint position between “Off” and “On” and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers.
- • QO 30 amp two-pole circuit breaker
- • Qwik-open circuit breaker protection (trips within 1/60th of a second) on 15A and 20A single-pole breakers at currents as low as 150A to 200A
- • Trips thermally (in an overload situation) or magnetically (under a short circuit situation)
- • Quick make quick break mechanism
- • SWD (switching duty) rating on 15A and 20A single-pole breakers
- •
