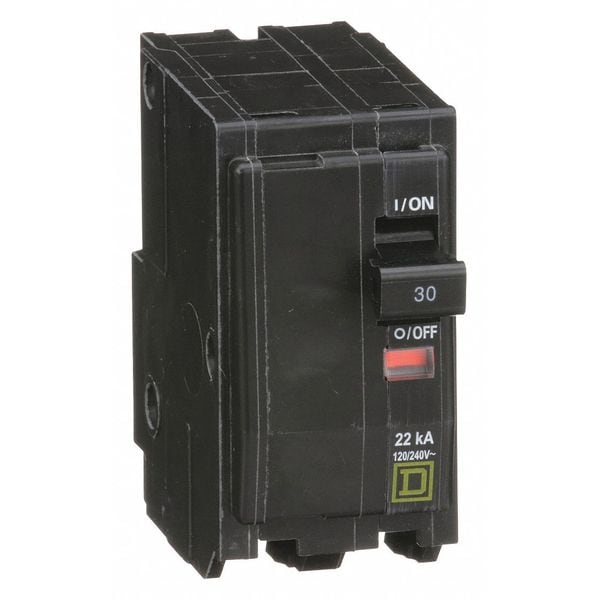

Miniature Circuit Breaker, QO Series, 30A, 2 Pole, 120/240V AC, 22kA at 120/240V AC
Mfr # QO230VH
Zoro # G1736734
CAD Available
product price: $69.49
/eaKey Features
CAD Drawing
Series
QO
Amps
30A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QO230VH
Zoro #
G1736734
UPC #
785901371847
Country of Origin
Mexico
Dimensions
Frame Size
100A/QO
Width
1-1/2 in
Depth
2.91 in
Height
2.99 in
Min. Wire Size
14 AWG
Max. Wire Size
8 AWG
Wire Size
AWG 14 to AWG 8 copper or aluminium
Length
3 in
Description
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase Single, Series QO, Max. AIR Rating 22kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 1.5 in, Depth 2.91 in
