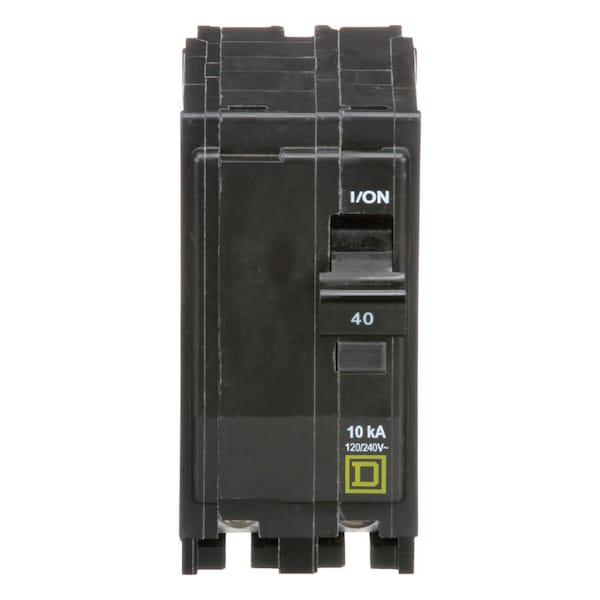

Miniature Circuit Breaker, QO Series, 40A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO240CP
Zoro # G2719839
product price:
$
44.29
/ea
Key Features
Series
QO
Amps
40 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QO240CP
- Zoro #
- G2719839
- UPC #
- 47569838040
- Country of Origin
- United States
Dimensions
- Frame Size
- QO
- Width
- 1-1/2 in
- Depth
- 2.91 in
- Height
- 3.11 in
- Max. Wire Size
- 2 AWG (Cu/Al)
- Min. Wire Size
- 8 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 40 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Features
- Mercury Free
- Application
- HACR rated Applications
- Standards
- UL Listed, CSA
- Interrupt Rating
- 10 kA at 120/240V AC
Description
The QO 40 amp 1-1/2 inch double-pole circuit breaker is compatible with QO load centers, QO enclosures and NQOD panel boards. The breaker features a Visi-Trip indicator to easily identify a tripped circuit in the load center. This circuit breaker has a maximum load of 240-volt with a 10,000 air and uses a thermal-magnetic tripping mechanism.
- • Double Pole
- • 3/4" Format
- • Red Visi-Trip features indicates tripped breaker
- • Two-pole common trip
- • Compatible with QO load centers and CSED devices
- •
