  5. Miniature Circuit Breaker, QO Series, 60A, 3 Pole, 240V AC, 10kA at 240V AC

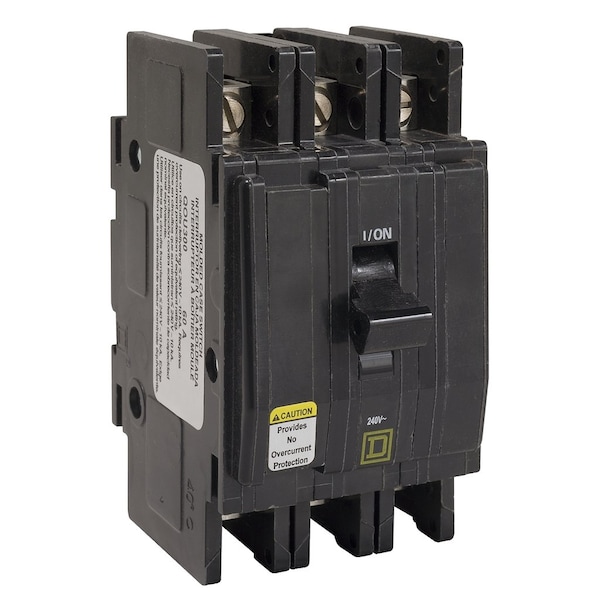

Square D Miniature Circuit Breaker, QO Series, 60A, 3 Pole, 240V AC, 10kA at 240V AC QOU300 - main

Miniature Circuit Breaker, QO Series, 60A, 3 Pole, 240V AC, 10kA at 240V AC

  • Mfr # QOU300

  • Zoro # G0566511

product price:  $244.99
/ea
Free Shipping & Returns

Key Features

Series
QO
Amps
60A
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Toggle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QOU300
Zoro #
G0566511
UPC #
785901489238
Country of Origin
Mexico

Dimensions

Frame Size
100A/QOU
Width
2-1/4 in
Depth
2.95 in
Height
4.05 in
Min. Wire Size
12 AWG (Cu/Al)
Max. Wire Size
2/0 AWG (Cu/Al)

Details

Item
Miniature Circuit Breaker
Series
QO
Amps
60A
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Unit Mount
Max. AIR Rating
10kA at 240V AC
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Features
Mercury Free
Standards
UL Listed, CSA
Application
HACR rated Applications
AWG Gauge
AWG 12 to AWG 2/0 aluminium/copper
Tightening Torque
45 lbf.in (5.08 N.m) (AWG 14 to AWG 2)
Circuit Breaker Application
HACR rated
Product Certifications
UL Listed; CSA
Trip Type
Magnetic Strip
Circuit Breaker Type
Miniature, Low Voltage

Description

Nonautomatic Miniature Switch 240V 60A
