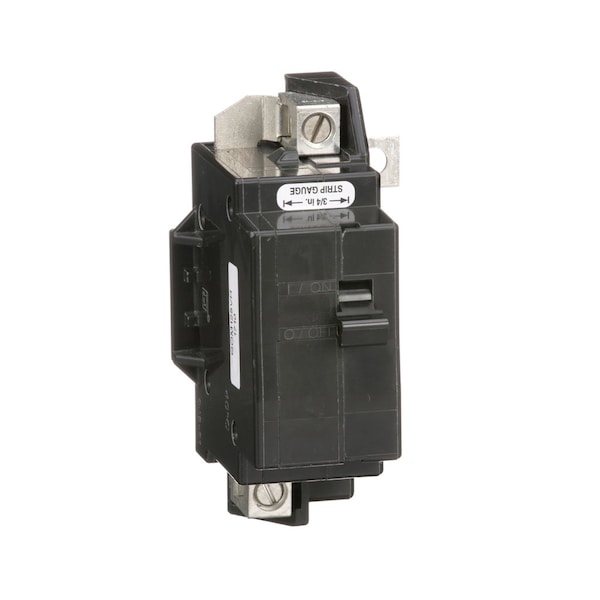

Miniature Circuit Breaker, QO Series, 80A, 2 Pole, 240V AC, 22kA at 120/240V AC
Mfr # QOM80VH
Zoro # G0566940
product price:Â
$
105.99
/ea
Free Shipping & Returns
Key Features
Series
QO
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Main Breaker
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QOM80VH
- Zoro #
- G0566940
- UPC #
- 785901054726
- Country of Origin
- Korea, Republic of
Dimensions
- Frame Size
- QOM1
- Width
- 88 mm
- Depth
- 127 mm
- Height
- 129 mm
- Max. Wire Size
- 2/0 AWG (Cu/Al)
- Min. Wire Size
- 4 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 80 A
- Number of Poles
- 2
- AC Voltage Rating
- 240V AC
- Circuit Breaker Type
- Main Breaker
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 22kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- For Use With
- QO Load Centers, HOMELINE Load Centers
- Interrupt Rating
- 22 kA at 120/240V AC, 10 kA
- Features
- Mercury Free
- Standards
- UL Listed, CSA
Description
Miniature Circuit Breaker 240V 80A, Series QOM
