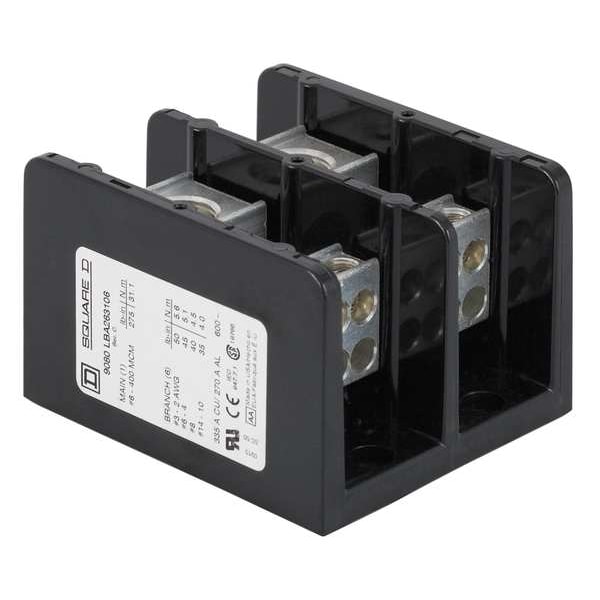

Miniature Power Distribution Block, Open, 2 Pole, 115 A Copper, 600 V AC/DC, Surface Mount
Mfr # 9080LBA261104
Zoro # G3522626
CAD Available
product price: $36.75
/eaKey Features
CAD Drawing
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
115 A
Maximum Current - Aluminum Conductor
90 A
Maximum Voltage
600 V AC/DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9080LBA261104
Zoro #
G3522626
UPC #
785901156956
Country of Origin
United States
Dimensions
Width
1.46 in
Depth
1.53 in
Length
2.29 in
For Line Copper Wire Size - Maximum
2 AWG
Overall Length
2.29 in
Overall Depth
1.48 in
For Load Copper Wire Size - Minimum
18 AWG
For Load Aluminum Wire Size - Minimum
18 AWG
For Line Aluminum Wire Size - Minimum
14 AWG
For Line Aluminum Wire Size - Maximum
2 AWG
For Line Copper Wire Size - Minimum
14 AWG
For Load Aluminum Wire Size - Maximum
10 AWG
Overall Width
1.48 in
For Load Copper Wire Size - Maximum
10 AWG
Wire Strip Length
Line 0.5 in; Load 0.38 in top; Load 0.63 in bottom
Description
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2 AWG, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 18 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 115 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 2
