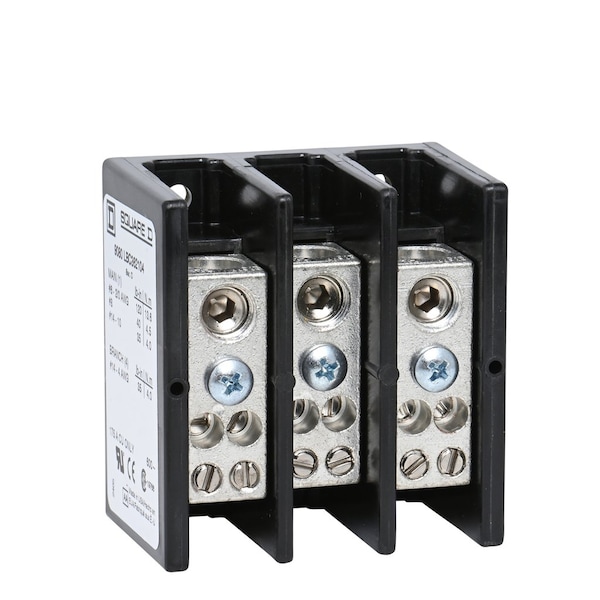

Power Distribution Block, 3 Pole, 175 A Copper, 600 V AC/DC, Surface Mount
Mfr # 9080LBC362104
Zoro # G0853791
product price:Â $299.99
/ea
Free Shipping & Returns
Key Features
Maximum Voltage
600 V AC/DC
Line Connections/Pole
1
Load Connections/Pole
4
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9080LBC362104
- Zoro #
- G0853791
- UPC #
- 785901097662
- Country of Origin
- Korea, Republic of
Dimensions
- Width
- 2.75 in
- Depth
- 1.78 in
- Length
- 2.88 in
- Wire Strip Length
- Load 0.38 in top; Line 0.75 in; Load 0.88 in bottom
- For Load Copper Wire Size - Maximum
- 4 AWG
- For Load Copper Wire Size - Minimum
- 14 AWG
- For Line Copper Wire Size - Maximum
- 2/0 AWG
- For Line Copper Wire Size - Minimum
- 14 AWG
Details
- Item
- Power Distribution Block
- Maximum Current - Copper Conductor
- 175 A
- Maximum Voltage
- 600 V AC/DC
- Number of Poles
- 3
- Line Connections/Pole
- 1
- Load Connections/Pole
- 4
- Line Side Connection Type
- Lug
- Load Side Connection Type
- Lug
- Housing Material
- Phenolic
- Maximum Operating Temperature
- 302 Degrees F
- Mounting Type
- Surface Mount
- Standards
- CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01
- Features
- Mercury Free
- Min. Operating Temp.
- -40°F
- Short Circuit Current Rating
- 65 kA
Description
Power Distribution Block 600V 175A
