Shop SQUARE D

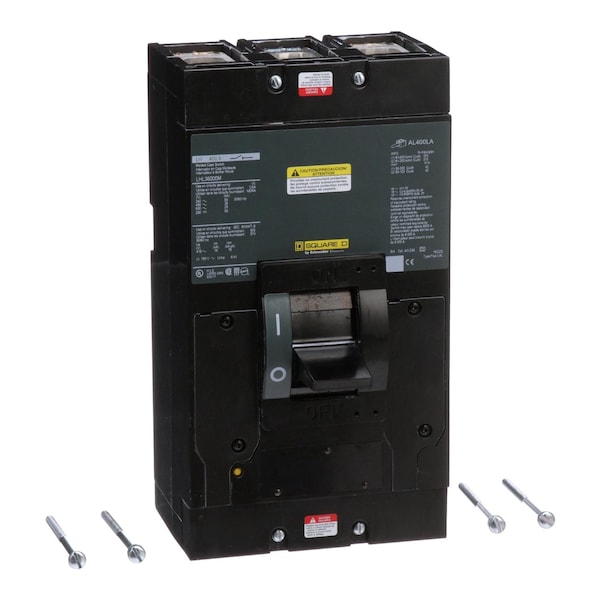

Molded Case Circuit Breaker, LEGACY MCCB Series, 400A, 3 Pole, 600V AC, 65kA at 240VAC

  • Mfr # LHL36000M

  • Zoro # G0845111

product price:  $2,954.54
/ea
Free Shipping & Returns

Key Features

Series
LEGACY MCCB
Amps
400 A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
High Interrupting
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LHL36000M
Zoro #
G0845111
UPC #
785901042273
Country of Origin
Mexico

Dimensions

Frame Size
400A/LH
Width
6 in
Depth
5.84 in
Height
11 in

Details

Item
Molded Case Circuit Breaker
Series
LEGACY MCCB
Amps
400 A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
High Interrupting
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Unit Mount
Max. AIR Rating
65kA at 240VAC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
250V DC
Standards
IEC, CSA, UL Listed
Application
HACR rated Applications
Features
Mercury Free; PVC Free
High Amp Trip Setting
9600 A
Magnetic Hold Current
8000 A
Certifications
IEC; CSA; UL Listed
Terminal Identifier
AL400LA
Tightening Torque
115.06 lbf.in (13 N.m) 0.07 to 0.47 in² (42 to 304 mm²) (AWG 1 to 600 kcmil); 115.06 lbf.in (13 N.m) 0.07 to 0.20 in² (42 to 127 mm²) (AWG 1 to 250 kcmil)
Circuit Breaker Application
HACR rated
Breaking Capacity Code
H

Description

Automatic Molded Case Switch 600V 400A
