  9. Molded Case Circuit Breaker, POWERPACT H Series, 125A, 3 Pole, 600V AC, 125kA at 240V AC

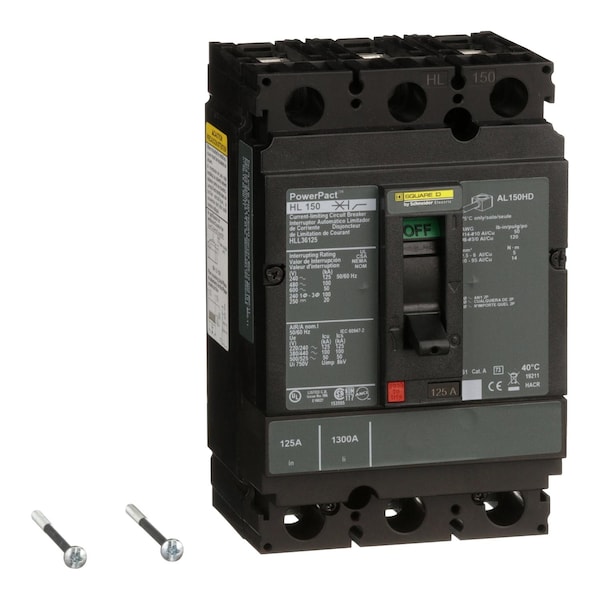

Square D Molded Case Circuit Breaker, POWERPACT H Series, 125A, 3 Pole, 600V AC, 125kA at 240V AC HLL36125 - main

Molded Case Circuit Breaker, POWERPACT H Series, 125A, 3 Pole, 600V AC, 125kA at 240V AC

  • Mfr # HLL36125

  • Zoro # G3979708

product price: $6,190.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT H
Amps
125A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HLL36125
Zoro #
G3979708
UPC #
-
Country of Origin
Mexico

Dimensions

Frame Size
150A/HL
Width
4.12 in
Depth
4.36 in
Height
6.40 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
3/0 AWG (Cu/Al)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT H
Amps
125A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
125kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
DC Voltage Rating
250/500V DC
Color
Black
Application
HACR rated Applications; Distribution
Interrupt Rating
125 kA at 220/240V AC, 100 kA at 380/440/415/480V AC, 50 kA at 500/525/600V AC, 50 kA at 500V DC
Standards
UL, CSA, NEMA, NOM, CE
High Amp Trip Setting
1700 A
Features
Mercury Free; PVC Free

Description

Circuit breaker,PowerPact H,thermal ma
