  5. Molded Case Circuit Breaker, POWERPACT H Series, 150A, 3 Pole, 600V AC, 125kA at 240V AC

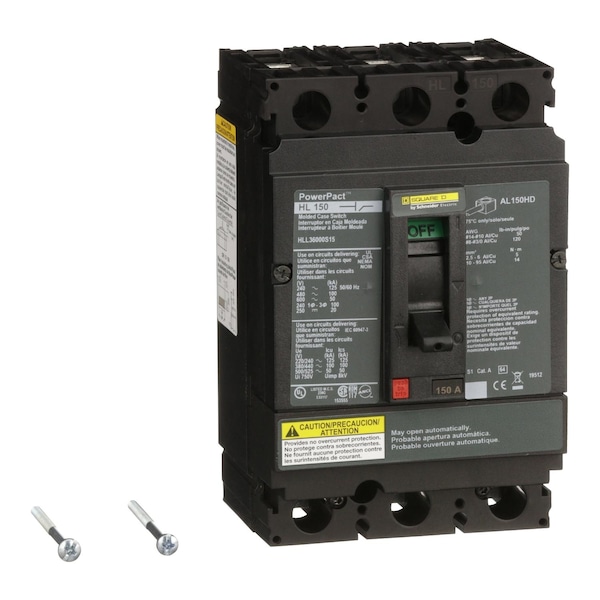

Square D Molded Case Circuit Breaker, POWERPACT H Series, 150A, 3 Pole, 600V AC, 125kA at 240V AC HLL36000S15 - main

Molded Case Circuit Breaker, POWERPACT H Series, 150A, 3 Pole, 600V AC, 125kA at 240V AC

  • Mfr # HLL36000S15

  • Zoro # G000422649

product price:  $1,865.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT H
Amps
150A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HLL36000S15
Zoro #
G000422649
UPC #
-
Country of Origin
United States

Dimensions

Frame Size
150A/HL
Width
4.12 in
Depth
4.36 in
Height
6.40 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
3/0 AWG (Cu/Al)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT H
Amps
150A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Unit Mount
Max. AIR Rating
125kA at 240V AC
Trip Type
Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
DC Voltage Rating
250/500V DC
Standards
CE, IEC, CCC, CSA, NMX, UL Listed
Features
Mercury Free; PVC Free
High Amp Trip Setting
2250 A
Tightening Torque
44.25 lbf.in (5 N.m) 0.00 to 0.15 in² (2.5 to 95 mm²) (AWG 14 to AWG 3/0)
Rated Operational Voltage
600 V AC; 250 V DC
Poles Description
3P
Product Certifications
CE; IEC; CCC; CSA; NMX; UL Listed
Breaking Capacity Code
L
AWG Gauge
x AWG 14 to AWG 3/0 ( aluminium/copper )
Terminal Identifier
AL150HD
Short-Circuit Withstand
125 kA 240 V UL 489; 100 kA 480 V UL 489; 50 kA 600 V UL 489

Description

AUTOMATIC MOLDED CASE SWITCH 600V 150A

Documents & Resources
