  5. Molded Case Circuit Breaker, POWERPACT H Series, 150A, 3 Pole, 600V AC, 200kA at 240V AC

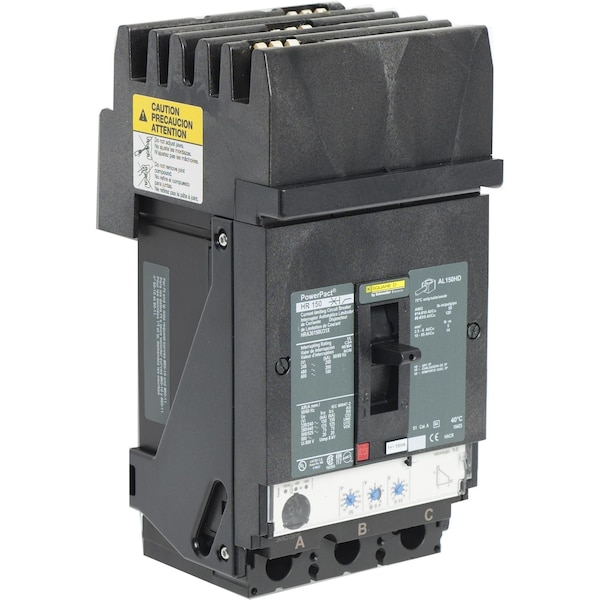

Square D Molded Case Circuit Breaker, POWERPACT H Series, 150A, 3 Pole, 600V AC, 200kA at 240V AC HRA36150U31X - main

Molded Case Circuit Breaker, POWERPACT H Series, 150A, 3 Pole, 600V AC, 200kA at 240V AC

  • Mfr # HRA36150U31X

  • Zoro # G3978630

product price:  $8,026.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT H
Amps
150A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Micrologic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HRA36150U31X
Zoro #
G3978630
UPC #
-
Country of Origin
United States

Dimensions

Frame Size
150A/HR
Width
4.09 in
Depth
3.39 in
Height
6.42 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
3/0 AWG (Cu/Al)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT H
Amps
150A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Micrologic
Phase
3
Circuit Breaker Actuator
I-Line
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
200kA at 240V AC
Trip Type
Electronic
Terminal Connection
I-Line, Lug
Phase Connection
ABC
DC Voltage Rating
Not Rated
Application
HACR rated Applications; Distribution
Interrupt Rating
150 kA at 220/240V AC, 125 kA at 380/440/415V AC, 75 kA at 500/525V AC, 20 kA at 690V AC, 200 kA at 240/480V AC, 100 kA at 600V AC
Features
Mercury Free; PVC Free
Color
Black
Standards
UL, CSA, NEMA, NOM, CE

Description

Circuit breaker,PowerPact H,I Line,Mi
