Shop SQUARE D

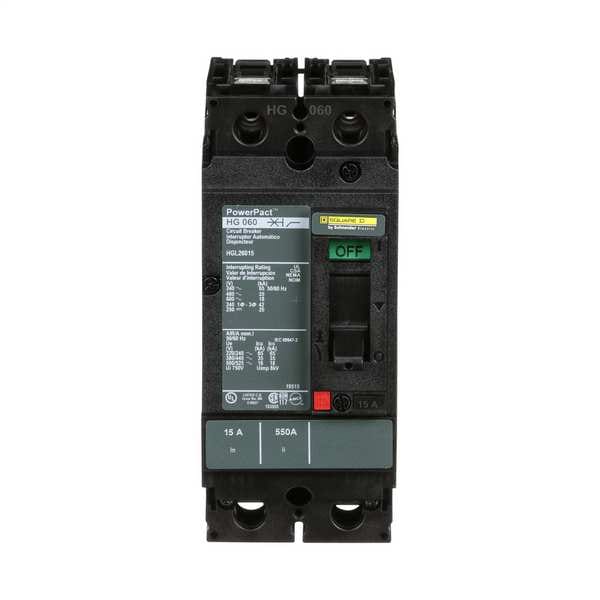

Molded Case Circuit Breaker, POWERPACT H Series, 15A, 2 Pole, 600V AC, 65kA at 240V AC

  • Mfr # HGL26015
  • Zoro # G2687151
product price:
$
947.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT H
Number of Poles
2
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HGL26015
Zoro #
G2687151
UPC #
785901433750
Country of Origin
Korea, Republic of

Dimensions

Frame Size
150A/HG
Width
2.74 in
Depth
4.36 in
Height
6.4 in
Min. Wire Size
14 AWG
Max. Wire Size
3 AWG
Power Wire Stripping Length
0.63 in (16 mm)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT H
Amps
15A
Number of Poles
2
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
Single
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Free Standing
Max. AIR Rating
65kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Line/Load Lug
Phase Connection
Non-Applicable
DC Voltage Rating
250/500V DC
High Amp Trip Setting
750 A
Standards
CE, CSA, IEC, UL Listed
Low Amp Trip Setting
350 A
Features
Mercury Free; PVC Free
Color
Black
Interrupt Rating
65 kA at 220/240V AC, 35 kA at 380/440/415/480V AC, 18 kA at 500/525/600V AC, 20 kA at 250/500V DC
Application
HACR rated Applications; Distribution
Max. Operating Temp.
104 Degrees F
Protected Poles Description
2t
Pollution Degree
3 IEC 60947-1
Circuit Breaker Application
HACR rated
Rated Service Breaking Capacity
65 kA 220/240 V AC 50/60 Hz IEC 60947-2; 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 18 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2
Ambient Air Temperature For Operation
28 to 158°F (-2 to 70°C)
AWG Gauge
AWG 14 to AWG 3/0 aluminium/copper terminal
Rated Operational Voltage
690 V AC 50/60 Hz IEC 60947-3
Rated Insulation Voltage
750 V IEC 60947-2
Communication Interface
Modbus; Ethernet
Product Certifications
UL; CSA; NOM
Number Of Slots
2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)
Suitability For Isolation
Yes IEC 60947-2
Ambient Air Temperature For Storage
-58 to 185°F (-50 to 85°C)
Terminal Identifier
AL150HD
Device Application
Distribution
Local Signalling
Switched off (OFF) 1 trip indicator green)
Operating Altitude
Less than 6561.68 ft (2000 m) without derating; 5000 m with derating
Quality Labels
CE
Breaking Capacity Code
G
Network Frequency
50/60 Hz
Rated Impulse Withstand Voltage
8 kV IEC 60947-2
IP Degree Of Protection
Front cover IP40 IEC 60529
Continuous Current Rating
0.8
Tightening Torque
44.25 lbf.in (5 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 in² (10 to 95 mm²) (AWG 8 to AWG 3/0)
Breaking Capacity
65 kA 240 V AC 50/60 Hz UL 489; 35 kA 480 V AC 50/60 Hz UL 489; 18 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489; 20 kA 500 V DC UL 489

Description

Molded Case Circuit Breaker, 15 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 240V AC, For Use With -, Series HG, High Amp Trip Setting 750 A, Low Amp Trip Setting 350 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 250/500V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Not Applicable, Frame Size 150A/HG, Circuit Breaker Mounting Style Free Standing, Height 6.4 in, Width 2.74 in
