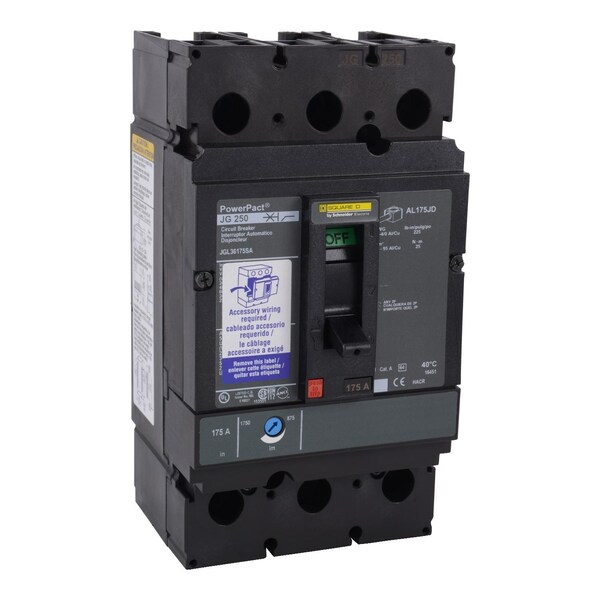

Molded Case Circuit Breaker, POWERPACT J Series, 175A, 3 Pole, 600V AC, 65kA at 240V AC
Mfr # JGL36175SA
Zoro # G4061291
product price:Â
$
3,483.99
/ea
Free Shipping & Returns
Key Features
Series
POWERPACT J
Amps
175 A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Shunt Trip
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- JGL36175SA
- Zoro #
- G4061291
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Frame Size
- 250A/JG
- Width
- 4.12 in
- Depth
- 5 in
- Height
- 7.52 in
- Max. Wire Size
- 4/0 AWG (Cu/Al)
- Min. Wire Size
- 4 AWG (Cu/Al)
Details
- Item
- Molded Case Circuit Breaker
- Series
- POWERPACT J
- Amps
- 175 A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- Shunt Trip
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Surface Mount/DIN Rail
- Max. AIR Rating
- 65kA at 240V AC
- Trip Type
- Thermal Magnetic
- Terminal Connection
- Line/Load Lug
- Phase Connection
- ABC
- DC Voltage Rating
- 250/500V DC
- Features
- Mercury Free; PVC Free
- High Amp Trip Setting
- 1750 A
- Standards
- UL, CSA, NEMA, NOM, CE
- Interrupt Rating
- 65 kA at 220/240V AC, 35 kA at 380/440/415/480V AC, 18 kA at 500/525/600V AC, 20 kA at 250/500V DC
- Application
- HACR rated Applications; Distribution
Description
PowerPact J-Frame breaker,thermal-magne
