  5. Molded Case Circuit Breaker, POWERPACT Q Series, 100A, 3 Pole, 240V AC, 65kA at 240V AC

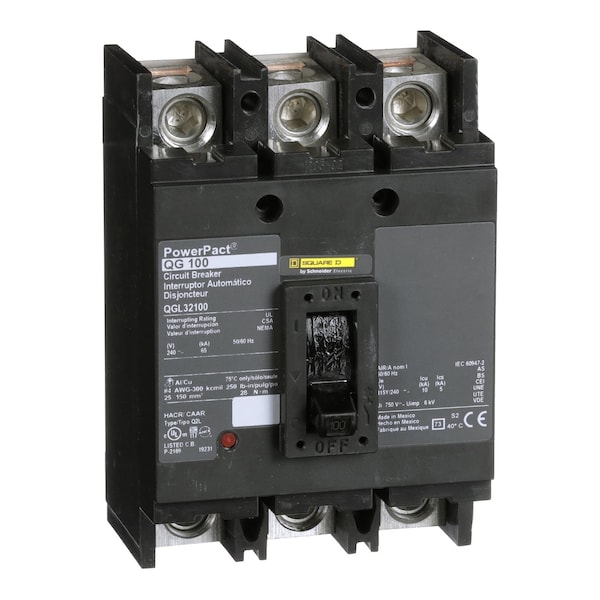

Square D Molded Case Circuit Breaker, POWERPACT Q Series, 100A, 3 Pole, 240V AC, 65kA at 240V AC QGL32100 - main
Shop SQUARE D

Molded Case Circuit Breaker, POWERPACT Q Series, 100A, 3 Pole, 240V AC, 65kA at 240V AC

  • Mfr # QGL32100

  • Zoro # G0566986

product price:  $1,694.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT Q
Amps
100A
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QGL32100
Zoro #
G0566986
UPC #
785901603504
Country of Origin
Mexico

Dimensions

Frame Size
250A/QG
Width
4-1/2 in
Depth
3.93 in
Height
6.47 in
Power Wire Stripping Length
0.87 in (22 mm)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT Q
Amps
100A
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Operating Handle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
65kA at 240V AC
Trip Type
Thermal Magnetic
Terminal Connection
Line/Load Lug
Phase Connection
ABC
DC Voltage Rating
Not Rated
Application
HACR rated Applications; Distribution
Features
Mercury Free; PVC Free
High Amp Trip Setting
2400 A
Interrupt Rating
65 kA at 120/208/240V AC
Standards
UL, CSA, NEMA, NOM
Tightening Torque
247.82 lbf.in (28 N.m) 0.04 to 0.23 in² (25 to 150 mm²) (AWG 4 to 300 kcmil)
Magnetic Hold Current
1200 A
Ambient Air Temperature For Operation
104 to 158°F (40 to 70°C)
Rated Impulse Withstand Voltage
8 kV UL
Breaking Capacity
65 kA 120/208 V AC 50/60 Hz UL; 65 kA 240 V AC 50/60 Hz UL
Breaking Capacity Code
G
Local Signalling
1 trip indicator green)
Rated Operational Voltage
240 V AC 50/60 Hz UL
Continuous Current Rating
0.8
Device Application
Distribution
Network Frequency
50/60 Hz
Mechanical Durability
1000 cycles loaded; 5000 cycles no load
Circuit Breaker Application
HACR rated
Product Certifications
UL; CSA; NOM

Description

Molded Case Circuit Breaker 240V 100A
