  13. Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp

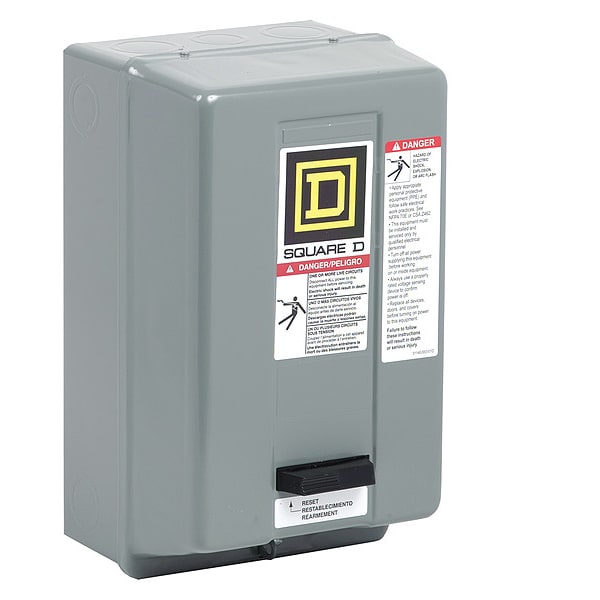

Square D Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp 8536SBG1V02 - main

Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp

  • Mfr # 8536SBG1V02

  • Zoro # G0561480

product price: $474.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
2
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8536SBG1V02
Zoro #
G0561480
UPC #
785901080336
Country of Origin
Mexico

Dimensions

Overall Depth
141 mm
Overall Height
254 mm
Overall Width
152 mm

Details

Item
Motor Starter
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
2
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed, NEMA
Enclosure Type
Painted Steel Sheet
Features
Pvc Free
Operating Voltage
600V AC
Phase
1 phase
Auxiliary Contacts
Without
Maximum Voltage Rating
600 V AC
Horsepower Rating
1 HP 115 V AC; 2 HP 230 V AC
Control Circuit Type
Common Control Circuit
Short Circuit Current Rating
Circuit-breaker: 5 kA at 600 V AC; Fuse: 5 kA at 600 V AC
Control Units
No control units
Range of Product
S
Current AC
18 A
Overload Protection Type
Melting Alloy
Control Circuit Voltage
110 V AC 50 Hz, 120 V AC 60 Hz
NEMA Enclosure Rating
NEMA 1
Frequency
50/60 Hz

Description

Starter Motor Control Less Than1000Vac
