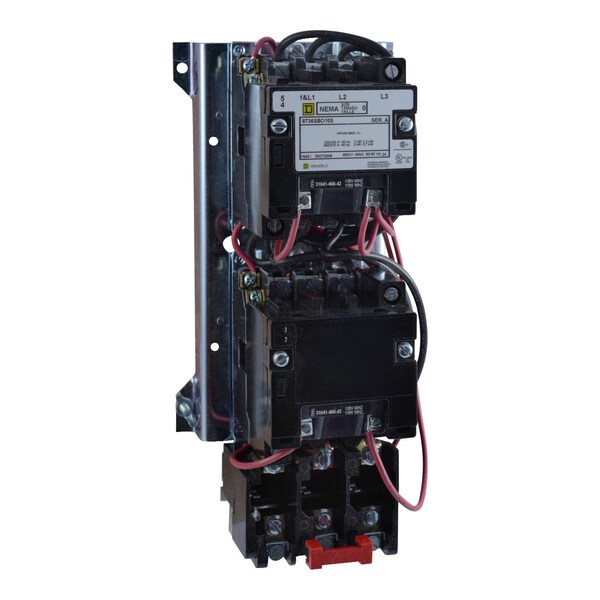

Square D Motor Starter, Reversing, No Auxiliary Contacts, 110V-120V AC, 3 P, Screw Clamp 8736SBO10V02S - main

Motor Starter, Reversing, No Auxiliary Contacts, 110V-120V AC, 3 P, Screw Clamp

  • Mfr # 8736SBO10V02S

  • Zoro # G0852525

product price:  $984.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8736SBO10V02S
Zoro #
G0852525
UPC #
785901102410
Country of Origin
Mexico

Dimensions

Overall Depth
134.87 mm
Overall Height
292.61 mm
Overall Width
138.94 mm

Details

Item
Motor Starter
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed
Enclosure Type
Open
Operating Voltage
600V AC
Short Circuit Current Rating
Circuit-breaker: 5 kA at 600 V AC; Fuse: 5 kA at 600 V AC
Control Units
No control units
Wiring Mode
3 wires
Horsepower Rating
3 HP 200 V AC; 3 HP 230 V AC; 5 HP 460 V AC; 5 HP 575 V AC
Control Circuit Type
Separate Control Circuit
Phase
3 phase
Auxiliary Contacts
Without
Maximum Voltage Rating
600 V AC
Range of Product
S
Overload Protection Type
Melting Alloy
Frequency
50/60 Hz
NEMA Enclosure Rating
Not Rated
Mounting Postion
Vertical
Current AC
18 A
Control Circuit Voltage
110 V AC 50 Hz, 120 V AC 60 Hz

Description

Reversing Starter 600Vac 18A Nema
